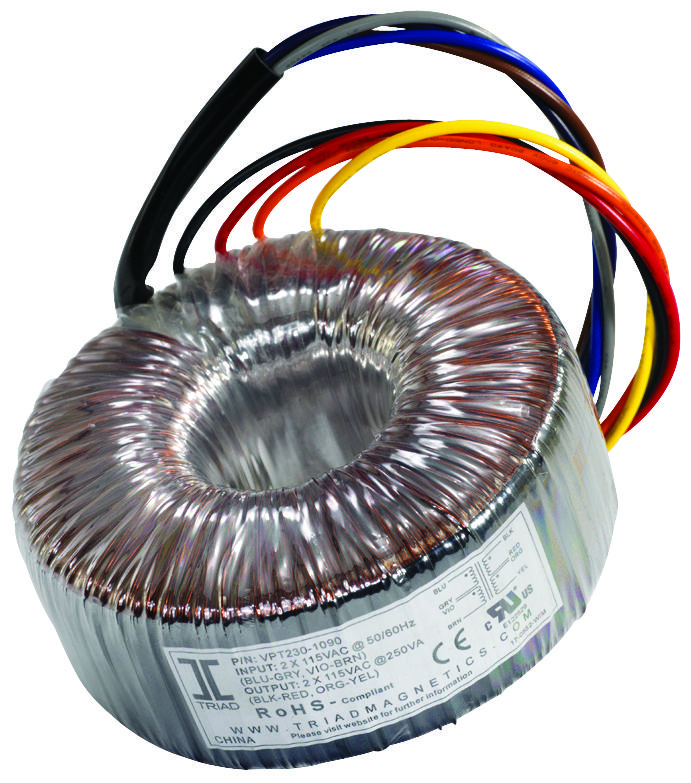

TRIAD MAGNETICS VPT230220 Toroidal Power Transformer

The VPT230-220 is a toroidal transformer featuring a design that reduces stray magnetic fields, enhances efficiency, and offers a compact form factor compared to traditional EI transformers. It is constructed with Class B insulation (130°C) and meets various international safety standards. The transformer includes a metal mounting plate, two rubber pads, an M5 x 45mm bolt with nut, spring, and flat washer. It utilizes an 8-inch long, 0.25-inch stripped and tinned stranded UL 1015 lead wire for connections. The device has undergone a high-voltage test of 4000VAC from primary to secondary. Suitable applications include power management and industrial systems.

Authorized Distributors
Source:Newark
Part No:VPT230-220
Stock:16
Inv Date:06-09-2026
Price: Unit price: $39.94
Buy/RFQ:
Source:DigiKey
Part No:VPT230-220
Stock:264
Inv Date:06-09-2026
Price: Unit price: $37.01
Buy/RFQ:
Part No:VPT230-220
Stock:72
Inv Date:06-09-2026
Price: Unit price: $36.92
Buy/RFQ:
Part No:VPT230-220
Stock:0
Inv Date:06-09-2026
Price: Unit price: $37.01
Buy/RFQ:
Part No:VPT230-220
Stock:0
Inv Date:06-09-2026
Price: Unit price: $36.75
Buy/RFQ:
Part No:VPT230-220
Stock:0
Inv Date:06-09-2026
Price: Unit price: $36.75
Buy/RFQ:
Part No:VPT230-220
Stock:0
Inv Date:06-09-2026
Price: Unit price: $28.33
Buy/RFQ:

TRIAD MAGNETICS VPT230220 Toroidal Power Transformer Specifications:

  • Maximum Power: 50VA
  • Input Voltage: 230VAC series, 115VAC parallel
  • Output Voltage: 230VAC CT @ 0.22A, 115VAC @ 0.44A
  • Voltage Regulation: 12% typical
  • Temperature Rise: 40°C typical
  • High Voltage Test: 4000VAC primary to secondary
  • Efficiency: 86% at full load
  • Construction: Toroidal with Class B insulation (130°C)
  • Dimensions: Length 85mm, Width 65mm, Height 45mm (+3mm for mounting hardware)
  • Weight: 0.6kg
  • Connection Wires: 8 inches long, 0.25 inches stripped, stranded UL 1015 wire
  • Primary Winding: Blue and Brown, with jumper Gray to Violet
  • Secondary Winding: Black and Yellow, with jumper Red to Orange
  • RoHS Compliant: Since February 2008

Buy the Buy Triad Toroidal Power Transformer Part Number VPT230220 Online

Experience the superior performance of the Toroidal Power Transformer. Designed with low magnetic fields, high efficiency, and robust safety features, this transformer is perfect for industrial power management and automation systems. It provides reliable voltage regulation, includes secure connection wires, and meets international safety standards like UL and RoHS. Its compact design features easy mounting and durable construction, making it an ideal choice for demanding applications requiring high performance, safety, and energy efficiency. Purchase online today to optimize your power needs with confidence.

Buy Triad VPT230-220 now and experience unmatched reliability and power efficiency for industrial and power management solutions.
