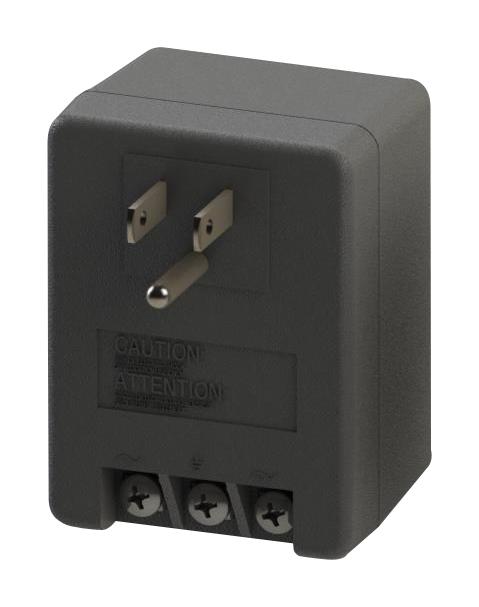

TRIAD MAGNETICS WAU0602000SG Power Supply
The WAU060-2000-SG from Triad Magnetics is a wall plug-in AC power supply (Level VI) with a thermoplastic molded enclosure and three screw terminals with pass-through ground. It is UL/CUL approved (E341931) and complies with UL 1310 standards, offering efficient operation that meets DOE minimum efficiency levels. Operating on 120V, 60Hz, it provides 6VAC at 2000mA, with low no-load voltage and power consumption. Suitable for power management and consumer electronics, it operates between -10°C and +40°C. Its compact design features dimensions of 79.6mm x 59.7mm x 48.1mm, making it ideal for versatile applications.
TRIAD MAGNETICS WAU0602000SG Power Supply Specifications:
- Input Voltage: 120VAC, 60Hz
- Power Consumption: 16W
- Output Voltage: 6VAC ±5%
- Output Current: 2000mA
- No-Load Voltage: <7.8VAC
- No-Load Power: ≤0.21W
- Efficiency: Approx. 82.96%
- Operating Temperature Range: -10°C to +40°C
- Temperature Rise: 30°C max at rated load
- Enclosure Material: Thermoplastic
- Mechanical: Three screw terminals, pass-through ground
- Dimensions: 79.6mm x 59.7mm x 48.1mm (H x W x D)
- Certification: UL/CUL File E341931, UL 1310
- RoHS Compliance: Yes
- DOE/CEC Efficiency Standards: Met
- Applications: Power management, consumer electronics
Buy the Buy Triad Power Supply Part Number WAU060-2000-SG Online
Purchase the Triad WAU060-2000-SG today for a high-quality wall plug-in AC power supply designed for efficiency and durability. Featuring a thermoplastic enclosure, UL/CUL approval, and a compact form factor, this power supply provides 6VAC at 2000mA, meeting DOE standards for minimum efficiency. Its low no-load power consumption and operating temperature range of -10°C to +40°C make it suitable for a variety of power management and consumer electronics applications. Enjoy fast online ordering and consistent performance.
Get Triad WAU060-2000-SG today—built for reliable power delivery and energy efficiency in consumer electronics applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU0602000SG?
You can click on the BUY or RFQ button to purchase WAU0602000SG from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU0602000SG?
You can download the WAU0602000SG datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU0602000SG?
TRIAD MAGNETICS
