TRIAD MAGNETICS WAU121500 Power Supply

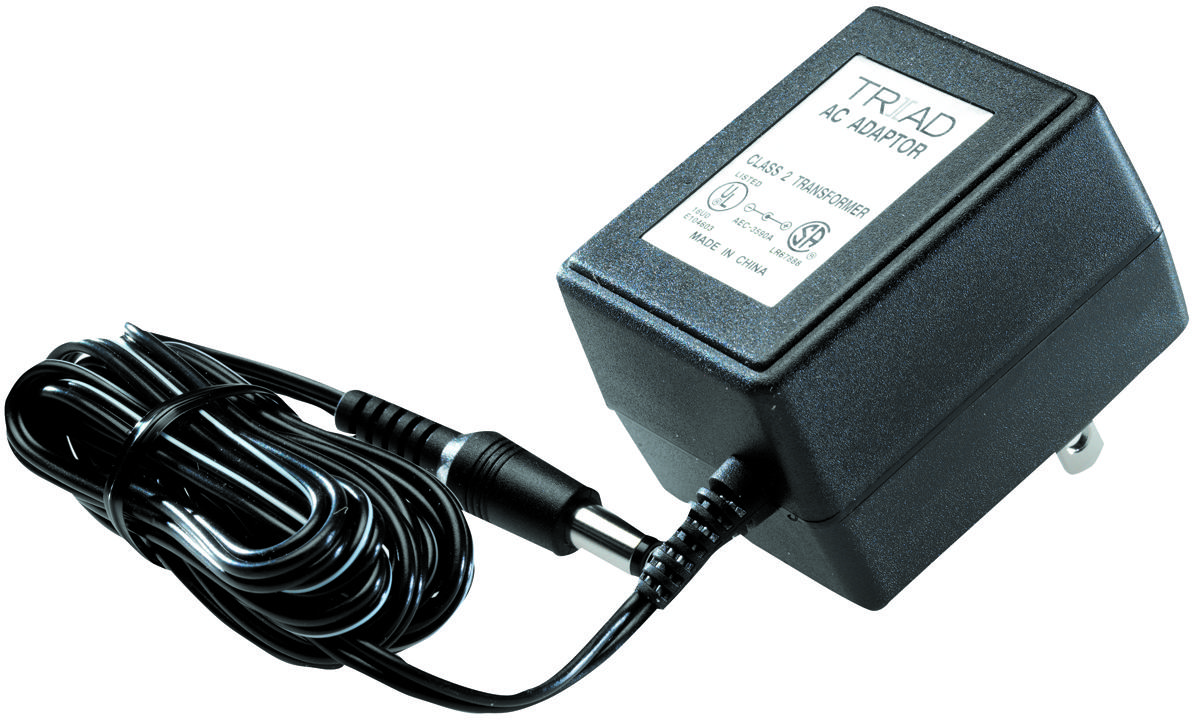

The WAU12-1500 is a compact 12VAC, 18W wall plug-in power supply featuring a thermoplastic molded enclosure, suitable for diverse power management needs. It operates safely within -10°C to 40°C, providing Class-2 protection and double insulation for enhanced safety. The device offers a 4kVDC dielectric isolation for one minute, ensuring reliable operation. Its design eliminates internal cooling components, reducing noise, size, and weight while keeping heat away from sensitive circuits. Fully enclosed to prevent tampering, it is certified for safety compliance, making it ideal for industrial and electronic applications requiring safe, efficient power supply units.
TRIAD MAGNETICS WAU121500 Power Supply Specifications:
- Output Voltage: 12VAC
- Power Output: 18W
- Operating Temperature Range: -10°C to 40°C
- Enclosure: Thermoplastic molded enclosure
- Output Cord: 24 AWG, 6 feet long
- Dielectric Isolation: 4kVDC for one minute
- Protection: Class-2 power supply, double insulated
- Certifications: UL, CUL safety listed, RoHS compliant
- Input Voltage: 120VAC, 60Hz
- Secondary Load: 1500mA
- Efficiency: Designed to reduce size, noise, heat
Buy the Triad Series WAU12-1500 Power Supply: WAU12-1500
Purchase the Triad WAU12-1500 power supply online for reliable 12VAC, 18W output with a thermoplastic enclosure. Designed for industrial and electronic applications, it offers excellent safety features including double insulation and dielectric isolation. Its compact form reduces noise, size, and weight while maintaining a safe temperature range of -10°C to 40°C. Certified safety standards ensure peace of mind. Ideal for replacing old or damaged power supplies quickly, it provides efficient power conversion and safety certifications for seamless integration into your electronic projects or equipment.
Get Triad WAU12-1500 power supply today—built for safety, reliability, and efficient power delivery.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU121500?
You can click on the BUY or RFQ button to purchase WAU121500 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU121500?
You can download the WAU121500 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU121500?
TRIAD MAGNETICS
