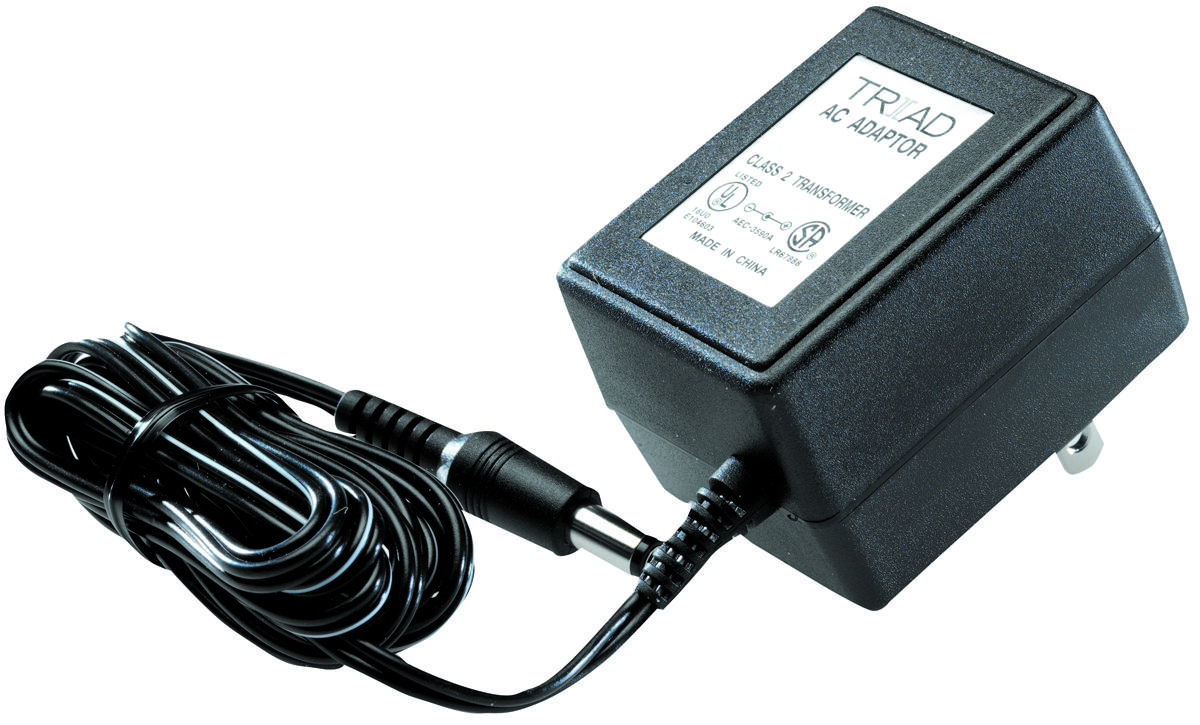

TRIAD MAGNETICS WAU162400 Power Supply
The WAU16-2400 is a compact 16VAC wall plug-in power supply delivering 38.4W, designed for efficient power management in various applications. Its thermoplastic molded enclosure ensures durability and safety, withstanding temperatures from -10°C to 40°C. The device features a 24 AWG output cord, Class-2 protection, and double insulation, providing enhanced safety and dielectric isolation of 4kVDC for one minute. Fully approved by UL/CUL, it reduces noise, size, and weight of products, making it ideal for sensitive circuits and regulatory compliance. This unregulated AC power source offers reliable operation for industrial and commercial uses.
TRIAD MAGNETICS WAU162400 Power Supply Specifications:
- Input Voltage: 120V AC, 60Hz, 47W
- Secondary Voltage: 16VAC ±5%
- Secondary Current: 2400mA
- Output Power: 38.4W
- Operating Temperature Range: -10°C to 40°C
- Output Cord: 24 AWG, 6 ft long
- Enclosure Material: Thermoplastic
- Protection: Class-2, Double insulation, 4kVDC dielectric isolation
- Certifications: UL, CUL listed (File E245587), RoHS compliant
- Dimensions: 11 mm height, 493+0.020 mm length
- Operating Frequency: 60Hz
- Application: Power management, low-voltage supplies
- Safety: Tamper-resistant, fully enclosed design
- Model: WAU16-2400
Buy the Triad Power Supply WAU16-2400 – Reliable 16VAC Power for Industrial Applications
Purchase the Triad WAU16-2400 power supply online today for dependable 16VAC output essential for industrial, commercial, and electronic projects. Its durable thermoplastic enclosure offers safety, tamper-resistance, and compliance with UL and RoHS standards, ensuring a secure, regulated power source. The device features a 6-foot output cord, double insulation, and dielectric isolation of 4kVDC for one minute. Perfect for sensitive circuits requiring stable power, this compact power supply simplifies design while providing proven reliability and regulatory approval, enabling seamless integration into your power management systems.
Buy Triad Power Supply WAU16-2400 now and experience unmatched reliability and performance in power management applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU162400?
You can click on the BUY or RFQ button to purchase WAU162400 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU162400?
You can download the WAU162400 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU162400?
TRIAD MAGNETICS
