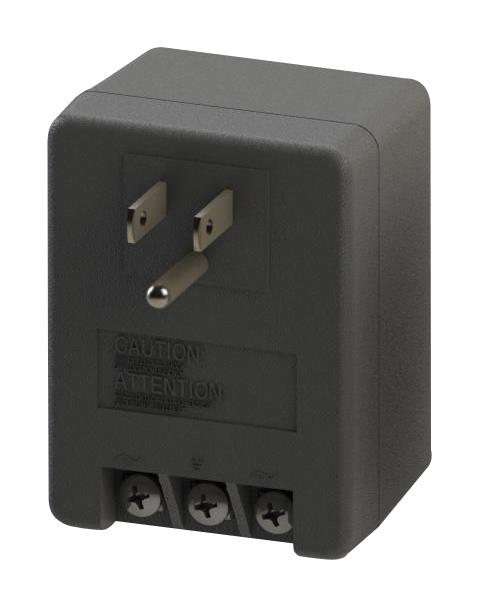

TRIAD MAGNETICS WAU240500SG Wall Power Supply
The WAU240-500-SG from Triad Magnetics is a reliable wall plug-in AC power supply with a thermoplastic enclosure, UL and CUL approval, and compliance with US DOE efficiency standards. It features a 120V input at 60Hz, less than 4mA excitation current, and outputs 24VAC with a±5% tolerance and 500mA current. Designed for power management and electronics, it includes screw terminals, pass-through ground, and operates within -10°C to +50°C. Dimensions are approximately 80mm x 60mm x 48mm, offering efficient and safe power delivery for various applications.
TRIAD MAGNETICS WAU240500SG Wall Power Supply Specifications:
- Input Voltage: 120VAC 60Hz, 16W
- Output Voltage: 24VAC ±5%
- Output Current: 500mA AC
- No Load Voltage: <29.5VAC
- No Load Power: ≤0.21W
- Efficiency: Approximately 82.96%
- Temperature Range: -10°C to +50°C
- Operating Temperature Range: -10°C to +50°C
- Temperature Rise: 30°C at rated load
- Enclosure: Thermoplastic molded
- Dimensions: approximately 79.6mm x 59.7mm x 48.1mm (H x W x D)
- Certifications: UL Listed, CUL Listed (File E341931)
- Compliance: DOE Level VI, RoHS
- Mechanical: 3 screw terminals with pass-through ground
Buy the Triad Series Power Supply: WAU240-500-SG
Shop online for the Triad Magnetics WAU240-500-SG power supply, offering high efficiency, UL and CUL approval, thermoplastic enclosure, and reliable AC power delivery. Perfect for power management and electronic applications, this compact power supply features screw terminals, a 24VAC output, and operates within a wide temperature range. Its best-in-class design ensures safe, stable performance with low no-load power consumption. Order now and upgrade your power solutions with a trusted, compliant, and efficient product available for quick online purchase.
Buy Triad WAU240-500-SG power supply now and experience unmatched reliability and performance for your power management needs, ensuring efficiency and safety.
