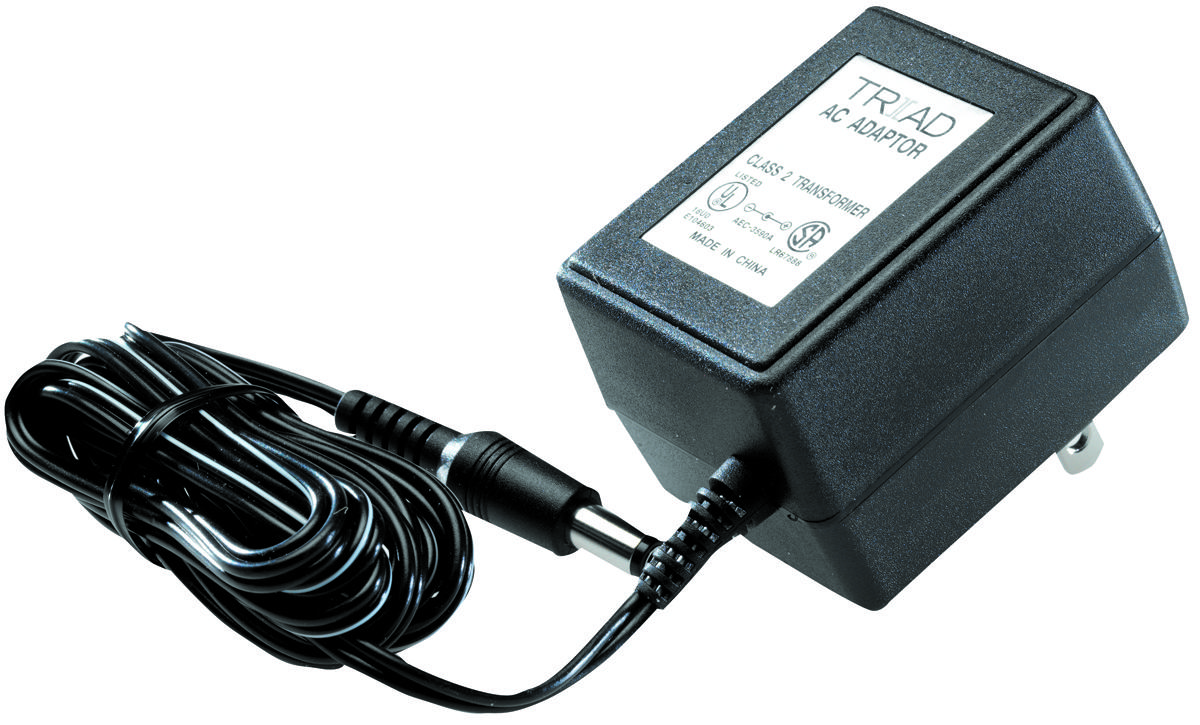

TRIAD MAGNETICS WDU12300 Power Supply
The WDU12-300 is a 12V DC, 6.5W wall plug-in power supply designed to simplify product design. This compact, enclosed power source reduces noise, size, and weight of connected devices while maintaining safety and reliability. It features a thermoplastic molded enclosure, operates from -10°C to 40°C, and includes a 24 AWG output cord. Certified by UL and CUL, it provides Class-B protection, double insulation, and dielectric isolation of 4kV for one minute. Ideal for power management and electronics applications, it offers stable output in a small, tamper-resistant package suitable for various industrial and consumer uses.
TRIAD MAGNETICS WDU12300 Power Supply Specifications:
- Input Voltage: 120VAC 60Hz, 6.6W
- Output Voltage: 12V DC with ±5% tolerance
- Output Power: 6.5W
- Output Current: 300mA
- Ripple Voltage: 1310mV Max
- Operating Temperature Range: -10°C to +40°C
- Temperature Rise: 75°C Max at rated load
- Case Type: Thermoplastic molded enclosure
- Output Cord: 24 AWG, 6 feet long minimum
- Agency Certifications: UL, CUL
- Dielectric Isolation: 4kV for one minute
- Protection Class: Class-B
- RoHS Compliance: Yes
- Frequency: 60Hz
Buy the Buy Triad Power Supply Part Number WDU12300 Online
Enhance your electronic projects with the WDU12-300 power supply, featuring 12V DC output at 6.5W, a thermoplastic enclosure, and UL/CUL certification. Its compact design is perfect for space-limited applications, providing stable output and safety features like double insulation and dielectric isolation. The 24 AWG output cord and operating temperature range of -10°C to 40°C ensure versatility and safety. Experience easy online purchasing with fast delivery and reliable performance for power management and electronic device powering needs.
Buy Triad WDU12-300 now and experience reliable, compact power with safe and certified design for your electronic projects.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WDU12300?
You can click on the BUY or RFQ button to purchase WDU12300 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WDU12300?
You can download the WDU12300 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WDU12300?
TRIAD MAGNETICS
