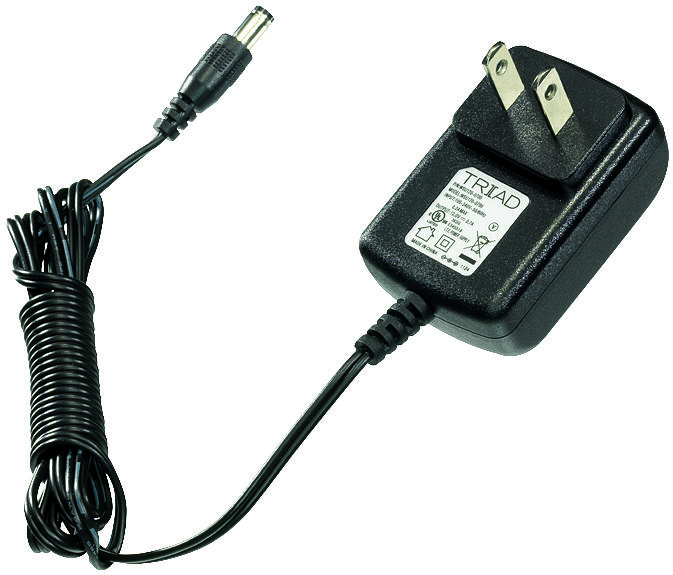

TRIAD MAGNETICS WSU075100013 Power Supply Module
The WSU075-1000-13 from Triad Magnetics is a wall plug-in switch mode power supply that provides a regulated 7.5V DC output at 1A current. Operating on a wide input voltage range of 100V to 240V AC, 50Hz/60Hz, it features a durable thermoplastic enclosure and a dielectric strength of 4kVDC for 60 seconds. Certified to UL 60950-1 and CSA STD C22.2 no 60950-1 standards, with double insulation, it includes a 5-foot, 20 AWG output cord, and an output connector with 2.5mm inner diameter and 5.5mm outer diameter. Suitable for industrial and electronic power applications, it operates between 0°C and 40°C at full load, ensuring safety and efficiency with minimized heat and noise.
TRIAD MAGNETICS WSU075100013 Power Supply Module Specifications:
- Input Voltage Range: 100-240VAC, 50-60Hz
- Output Voltage: 7.5VDC
- Output Current: 1A
- Efficiency: Level VI, meets EIAS 2007 standards
- Dielectric Strength: 4kVDC for 60 seconds
- Operating Temperature Range: 0°C to +40°C
- Storage Temperature Range: -20°C to 60°C
- Input Current: <0.4A at 115VAC
- Inrush Current: <60A peak at 115VAC
- Ripple & Noise: 150mVpk-pk max
- Enclosure Material: Thermoplastic
- Output Cord: 6 ft, 20 AWG
- Connector: 2.5mm inner diameter, 5.5mm outer diameter
- Certification: UL 60950-1, CSA STD C22.2 no 60950-1, FCC Part 15 Class B, RoHS compliant
- Protection: Over voltage and short circuit
Buy the Buy Triad WSU075-1000-13 Power Supply Part Number WSU075-1000-13 Online
Purchase the Triad WSU075-1000-13 power supply online for safe, efficient, and high-quality power conversion. This durable device features a 7.5V 1A output, wide input voltage range, and certified safety standards. Its thermoplastic enclosure ensures safety and durability, with a 5-foot output cord for flexible installation. Perfect for industrial, electronic, and power management applications, it operates efficiently within 0°C to 40°C, reducing heat build-up and noise. Trust Triad for reliable power solutions designed for long-lasting use and energy savings.
Get Triad WSU075-1000-13 power supply today—compact, reliable, and designed for industrial power applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WSU075100013?
You can click on the BUY or RFQ button to purchase WSU075100013 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WSU075100013?
You can download the WSU075100013 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WSU075100013?
TRIAD MAGNETICS
