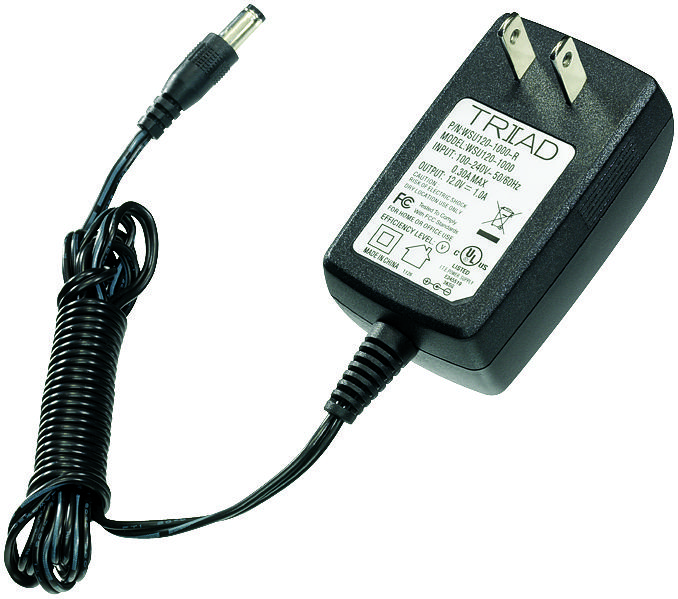

TRIAD MAGNETICS WSU1201000R13 Switch Mode Power Supply
The WSU120-1000-R13 from Triad Magnetics is a compact, energy-efficient wall plug-in switch mode power supply suitable for various applications. It accepts an input voltage of 100VAC to 240VAC at 50Hz/60Hz and delivers a stable 12VDC output with a maximum current of 1A, corresponding to 12W of power. Housed in a fully enclosed thermoplastic molded case, it features a 24 AWG output cord, dielectric strength of 4KVDC for 60 seconds, and dimensions of 2.5mm inner diameter, 5.5mm outer diameter, and 11mm length for the output plug. Certified under UL, CSA, and ETL, it meets Level VI energy efficiency standards and operates reliably from 0°C to 40°C, making it ideal for power management and industrial use.
TRIAD MAGNETICS WSU1201000R13 Switch Mode Power Supply Specifications:
- Input Voltage Range: 100VAC to 240VAC, 50Hz/60Hz
- Output Voltage: 12VDC
- Output Current: 1A
- Power: 12W
- Enclosure: Thermoplastic molded
- Output Cord: 24 AWG, 6 ft.
- Output Plug Dimensions: 2.5mm inner diameter, 5.5mm outer diameter, 11mm length
- Dielectric Strength: 4KVDC for 60 seconds
- Operating Temperature: 0°C to 40°C
- Efficiency Standards: Level VI, EISA 2007 compliance
- Certifications: UL, CSA, ETL
- Over voltage & short circuit protection: Yes
- Storage Temperature Range: -20°C to 60°C
- Humdity Range: 5% to 95%, Non-condensing
Buy the Buy Triad Power Supply WSU120-1000-R13 Online
Purchase the Triad Power Supply WSU120-1000-R13 online today for a highly reliable, energy-efficient power solution. Designed with a fully enclosed thermoplastic case, it provides a stable 12VDC output with 1A current, certified under UL, CSA, and ETL standards. Its compact design makes it ideal for industrial and power management applications. With an operating temperature range of 0°C to 40°C and compliance with Level VI energy efficiency standards, this power supply ensures long-lasting performance and safety, making it a perfect choice for demanding environments.
Get Triad power supply WSU120-1000-R13 today—compact, reliable, energy-efficient, suitable for industrial and power management applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WSU1201000R13?
You can click on the BUY or RFQ button to purchase WSU1201000R13 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WSU1201000R13?
You can download the WSU1201000R13 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WSU1201000R13?
TRIAD MAGNETICS
