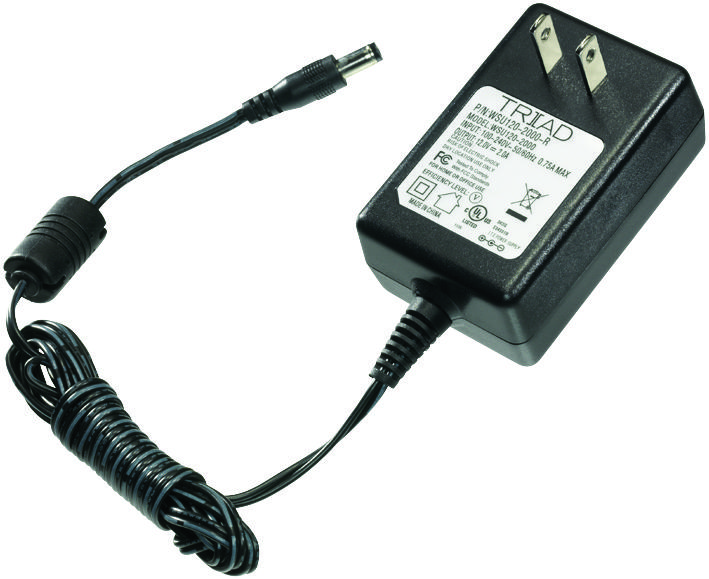

TRIAD MAGNETICS WSU120200013 Power Supply
The WSU120-2000-13 from Triad Magnetics is a versatile wall plug-in switch mode power supply designed for industrial and power management applications. It offers an input voltage range of 100VAC to 240VAC at 50Hz/60Hz, providing a regulated 12VDC output with a maximum current of 2A, delivering up to 24W of power. Encased in a thermoplastic molded enclosure, it features a 5-foot output cord with a 20 AWG wire, ensuring durability and portability. Its compact design eliminates internal cooling components, reducing noise, size, and weight while keeping heat away from sensitive circuits. The power supply complies with UL 60950-1, CSA, ETL standards, and energy efficiency regulations, making it suitable for industrial, automation, and power management systems. It is equipped with a center-positive polarity, a NEMA 1-15P plug, and features a dielectric strength of 4KVDC for 60 seconds, operating efficiently in temperatures from 0°C to +40°C.
TRIAD MAGNETICS WSU120200013 Power Supply Specifications:
- Input Voltage Range: 100VAC to 240VAC, 50/60Hz
- Output Voltage: 12VDC
- Output Current: 2A
- Power Output: 24W
- Efficiency: Up to 86.20%
- Enclosure: Thermoplastic molded
- Output Cord: 20 AWG, 5 feet long
- Connector Dimensions: Inner diameter 2.5mm, outer diameter 5.5mm, length 11mm
- Dielectric Strength: 4KVDC for 60 seconds
- Polarity: Center-positive
- Operating Temperature: 0°C to +40°C
- Certifications: UL 60950-1, CSA, ETL
- Compliance: EISA 2007, RoHS, Level VI efficiency
Buy the Triad Power Supply WSU120-2000-13 – Reliable 12VDC Power for Industrial Applications
Enhance your setup with the Triad WSU120-2000-13 power supply, offering a stable 12VDC output with 2A current capacity. Designed for industrial and automation needs, it features UL, CSA, and ETL certifications, a durable thermoplastic enclosure, and a 5-foot long output cord for flexible installation. Its high efficiency meets Level VI standards, reducing energy waste and operating costs. Compact and reliable, this power supply ensures safe, consistent power delivery in temperature ranges from 0°C to +40°C. Order online today for fast, secure delivery and improved system performance!
Buy Triad WSU120-2000-13 power supply now and experience unmatched reliability, safety, and energy efficiency for your industrial and automation projects.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WSU120200013?
You can click on the BUY or RFQ button to purchase WSU120200013 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WSU120200013?
You can download the WSU120200013 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WSU120200013?
TRIAD MAGNETICS
