TRIPP-LITE N820-03M Datasheet & Stock

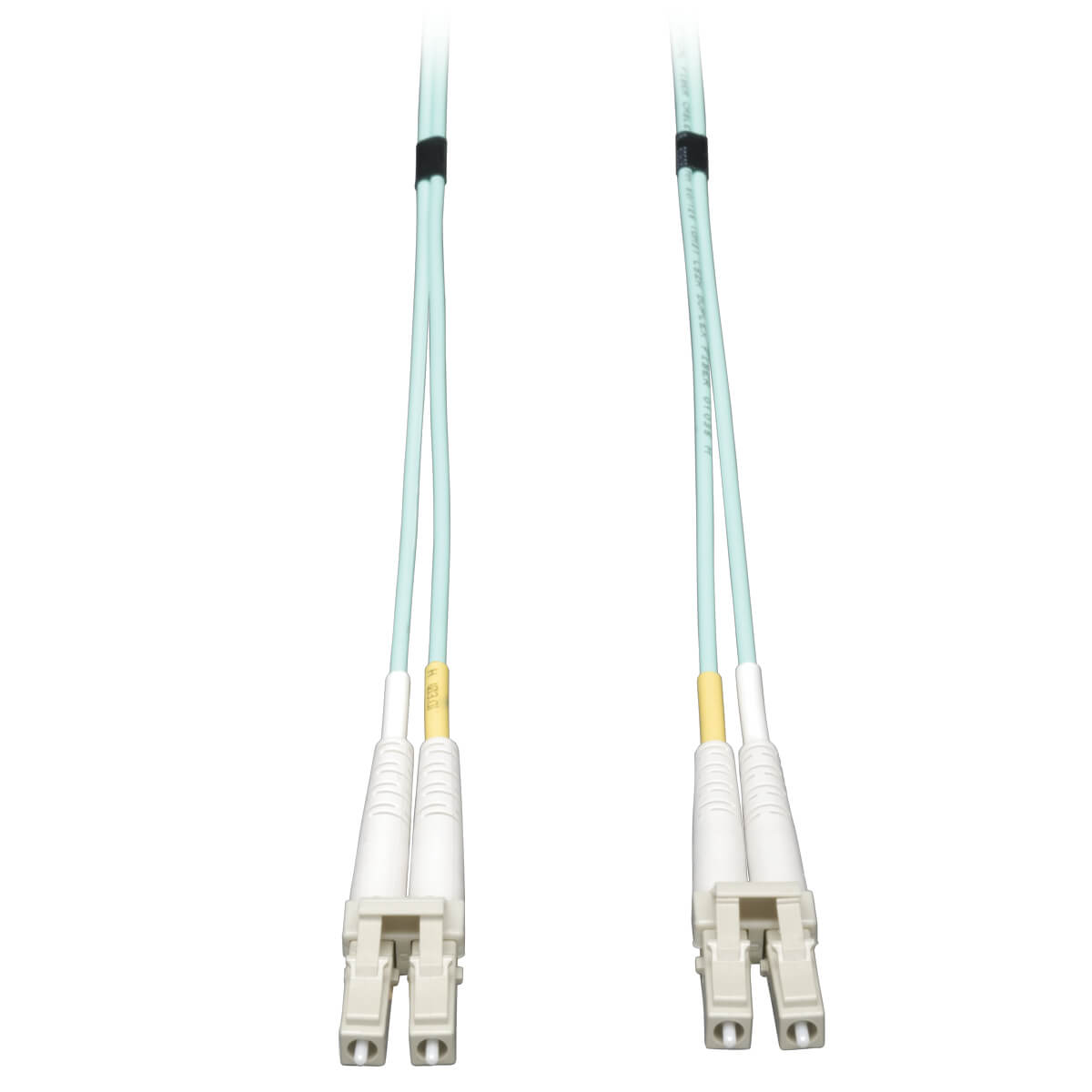

The N820-03M is a 3m 10GB duplex multimode OM3 LSZH Fibre Patch Cable with LC to LC connectors. It provides nearly four times the bandwidth over conventional 62.5µm multimode fibre, with performance rivalling that of single mode cable. LOMMF cable allows 10GB serial transmission over extended distances in the 850nm wavelength window, where vertical cavity surface emitting sasers (VCSELs) enable a high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's and high-speed parallel interconnects for head-ends, central offices and data centres.




Designed for 10GB Ethernet applications OM3 rated

Backward compatible with existing 50/125µm fibre

10Gb Distance of 300m at 850nm ( Maximum)

Low-smoke, zero halogen (LSZH) aqua jacket

Use with VCSEL and LED laser light sources

High-speed

High bandwidth

Backward compatible with legacy LAN's





Applications


Communications & Networking,

Fibre Optics






Contents

3m LC/LC duplex multimode 50/125 aqua OM3 fibre patch cable.
