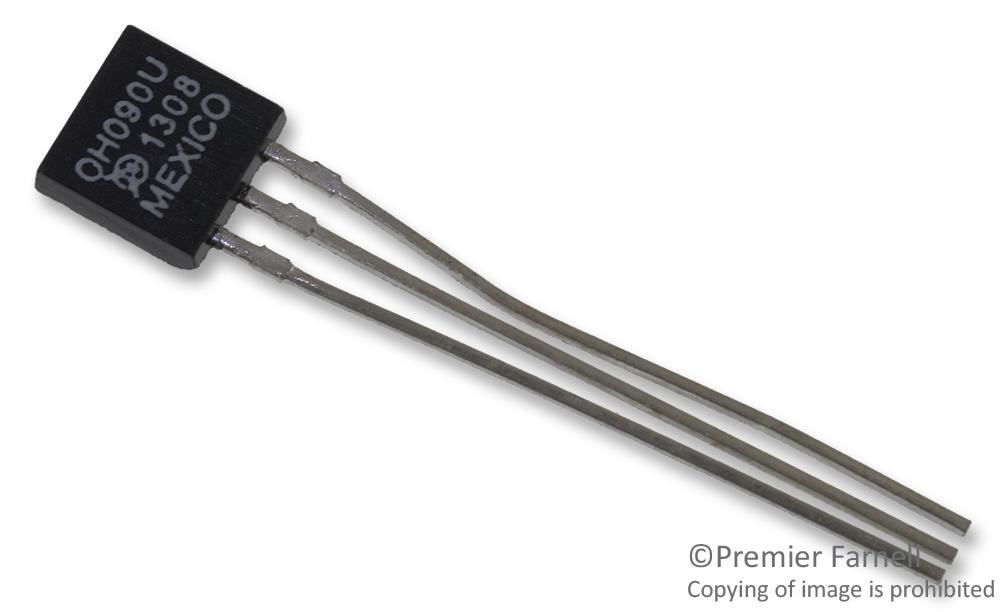

TT Electronics - Optek Technology OH090U Hall-effect sensor
The OH090U is a Hall-effect sensor featuring a monolithic integrated circuit that includes a Hall element, linear amplifier, threshold amplifier, and Schmitt trigger on a single silicon chip. It incorporates a bandgap voltage regulator, enabling operation over a wide supply voltage range from 4.5V to 24V. The device provides a logic-level output capable of sinking up to 21mA, suitable for directly driving multiple TTL loads or other standard logic families. Its output amplitude remains constant across switching frequencies from DC to over 200kHz. The sensor operates in a unipolar mode, turning on (logic level "0") when a magnetic field from the south pole approaches its surface and turning off (logic level "1") when the magnetic field diminishes. It is designed for through-hole mounting and is ideal for non-contact switching applications. The sensor offers excellent temperature stability, making it suitable for use in harsh environments, particularly in industrial settings. Please note that high market demand may lead to extended lead times, and the product is exempt from discounts.
TT Electronics - Optek Technology OH090U Hall-effect sensor Specifications:
- Supply Voltage: 4.5 V to 24 V
- Maximum Output ON Current: 21 mA
- Storage Temperature Range: -65°C to +160°C
- Operating Temperature Range: -20°C to +85°C
- Magnetic Operate Point: 0 to 180 Gauss
- Magnetic Release Point: -100 to 100 Gauss
- Hysteresis: 10 to 100 Gauss
- Output Voltage: Saturates at 25V (typical)
- Output Rise and Fall Time: approximately 0.21 to 1.00 μs
- Dimensions suitable for through-hole mounting
- Designed for non-contact switching, machine automation, safety applications
- Operates with excellent temperature stability in harsh environments
Buy the TT Electronics OH090U – Reliable Hall-effect Sensor for Industrial Applications
Enhance your automation systems with the TT Electronics OH090U Hall-effect sensor, designed for robust performance across harsh environments. With wide supply voltage compatibility from 4.5V to 24V and excellent temperature stability, it ensures reliable operation in industrial machinery, safety sensors, and end-of-travel switches. Its high drive capacity allows direct control of multiple loads, making installation straightforward and efficient. Suitable for through-hole mounting, this sensor is critical for non-contact switching applications. Buy online today for dependable, industrial-grade performance that meets demanding operational needs.
Order your TT Electronics OH090U sensor today and ensure dependable non-contact switching for your industrial projects.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OH090U?
You can click on the BUY or RFQ button to purchase OH090U from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OH090U?
You can download the OH090U datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OH090U?
TT Electronics - Optek Technology
