TTElectronics - Welwyn ASC08053M3FT5 Low Resistance Resistor
The Low Resistance Metal Alloy Resistor from the LRMA Series is designed for precise electrical current sensing and high-temperature operation up to 170°C. It features a resistance range from 1 mΩ to 100 mΩ, RoHS compliance, halogen-free construction, and variants for high power and low thermal EMF applications. Suitable for power electronics, these resistors have robust construction with copper-nickel or Mn-Cu alloys, black or green coatings, and are resistant to industrial solvents. They meet strict performance standards including overload, moisture, and temperature cycling tests, ensuring reliability and durability in demanding environments.
TTElectronics - Welwyn ASC08053M3FT5 Low Resistance Resistor Specifications:
- Resistance range: 1 mΩ to 100 mΩ
- Power rating @70°C: 1W to 3W depending on size and version
- Overload rating: up to 15W for short durations
- Size options: 1206, 2512, 0815
- Temperature range: -55°C to 170°C
- Element alloys: Cu-Ni or Mn-Cu
- Resistance tolerance: ±1%, ±5%
- TCR (25 to 125°C): +75 to +275 ppm/°C
- Insulation resistance: >100 MΩ
- Coatings: Black or Green UL94-V0
- Construction: Copper electrode with nickel or tin plating
- Resistance marking: OHMIC VALUE e.g., 'R010' = 10mΩ
- Solder resistance: >95% coverage at 245°C for 2s
- Features: RoHS compliant, halogen-free, solvent resistant
- Physical dimensions: Length 3.2mm to 4.0mm, width 1.5mm to 3.2mm, thickness 0.5mm to 0.7mm
- Mounting: Tape or embossed packaging for automated assembly
- Maximum load cycling, humidity, temperature cycling, and soldering resistances tested

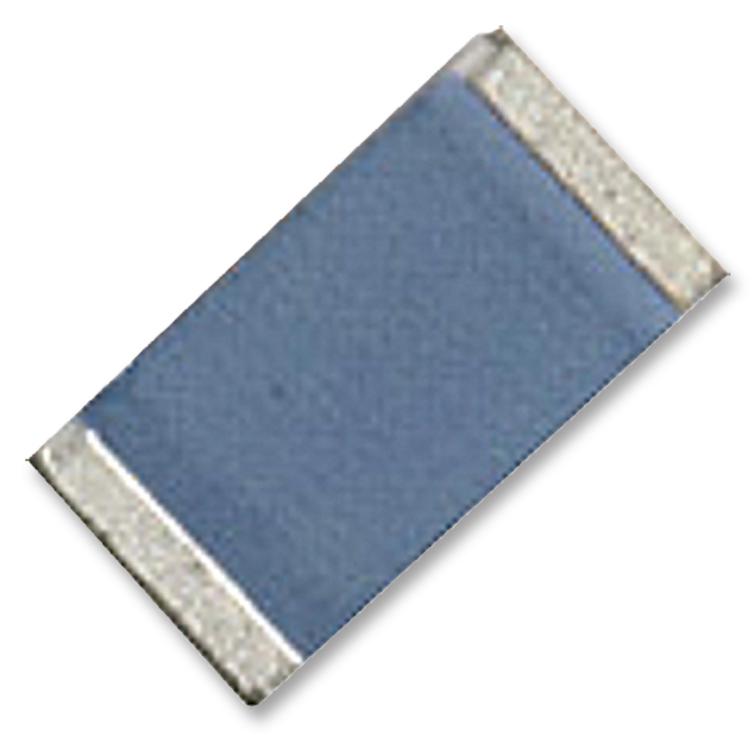

Buy the Buy TT electronics LRMA Series Low Resistance Metal Alloy Resistor Part Number ASC08053M3FT5 Online
Purchase the TT electronics LRMA Series Low Resistance Resistor ASC08053M3FT5 online today to ensure reliable current sensing and stability in your power electronic projects. This high-precision resistor features resistance values from 1 milliohm to 100 milliohms, robust construction with copper-nickel or Mn-Cu alloys, and coatings that are UL94-V0 compliant. Suitable for demanding environments, it offers excellent heat resistance up to 170°C, low thermal EMF options, RoHS compliance, and solvent resistance. Ideal for both manual and automated assembly, ensuring durability and performance in high-temperature conditions.
Get TT electronics LRMA Series low resistance resistor ASC08053M3FT5 today—built for precision and long-lasting durability in demanding power electronics.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn ASC08053M3FT5?
You can click on the BUY or RFQ button to purchase ASC08053M3FT5 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part ASC08053M3FT5?
You can download the ASC08053M3FT5 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of ASC08053M3FT5?
TTElectronics - Welwyn
