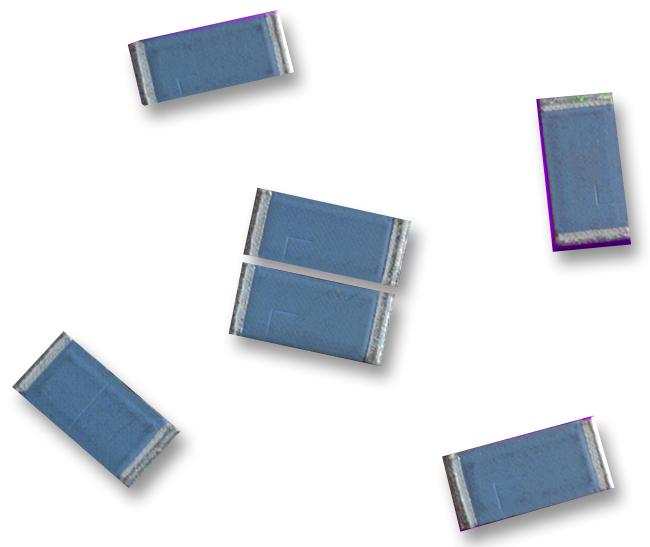

TTElectronics - Welwyn DSC25123K3JI Double-Sided Chip Resistor
The DSC series double-sided chip resistors are highly reliable passive components designed for precise resistance with excellent pulse withstand performance. Constructed with thick film resistor material, they feature wrap-around terminations, and offer various sizes such as 0603, 0805, 1206, 2010, and 2512, with resistance ranges from 1Ω to 1MΩ. Suitable for automatic handling and reflow soldering, these resistors excel in demanding environments, providing enhanced power ratings, anti-sulphur versions, and robust construction to ensure long-term durability in industrial applications.
TTElectronics - Welwyn DSC25123K3JI Double-Sided Chip Resistor Specifications:
- Sizes available: 0603, 0805, 1206, 2010, 2512
- Resistance range: 1Ω to 1MΩ
- Tolerance: ±0.5% (up to 1MΩ), ±1% (other values)
- Power @70°C: 0.125W (0603), 0.25W (0805), 0.33W (1206), 0.75W (2010), 15W (2512)
- Maximum operating temperature: -55°C to +155°C
- Dielectric withstand voltage: 500V
- Temperature coefficient: <10 ppm/°C for ≤10Ω, <100 ppm/°C for >10Ω
- Resistance to sulphur-bearing gases: 0.25% (AS version)
- Marking: Not marked, type, value, tolerance, date code marked on reels
- Construction: Thick film resistor on alumina substrate with electroplated nickel barrier
- Solderability: Excellent due to wrap-around terminations
- Solder bath withstand: Up to 260°C for 30 seconds
Buy the TT Electronics DSC Series – Reliable Double-Sided Chip Resistors for Industrial Applications
Purchase TT Electronics DSC series double-sided chip resistors online to ensure high-performance, reliable resistance components for your industrial and electronic projects. These resistors are ideal for automatic assembly, reflow soldering, and demanding conditions, offering broad resistance options, enhanced power ratings, and anti-sulphur versions. With compact sizes like 0603, 0805, 1206, 2010, and 2512, they meet stringent industrial standards ensuring long-term durability, excellent pulse performance, and safety in electronic circuits. Buy now for dependable, high-quality resistors delivered directly to your workspace.
Get TT Electronics DSC series resistors today—built for precision, high reliability, and durable performance in demanding environments.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn DSC25123K3JI?
You can click on the BUY or RFQ button to purchase DSC25123K3JI from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part DSC25123K3JI?
You can download the DSC25123K3JI datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of DSC25123K3JI?
TTElectronics - Welwyn
