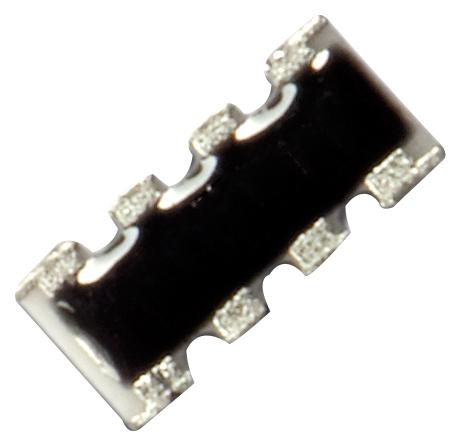

TTElectronics - Welwyn GBCN164AB1R00F7 Thick Film Resistor Array
The GBCN Series Green Thick Film Chip Arrays are RoHS compliant, Pb-free resistor arrays designed for high reliability electronic applications. Featuring ruthenium oxide protection on alumina substrates with nickel barrier and tin plating, these arrays offer a resistance range from 1Ω to 1MΩ, with a power rating of 250mW at 70°C and an overload voltage limit of 100V. Suitable for high-temperature environments, they are capable of withstanding voltages up to 300V dielectric withstand and operate reliably from -55°C to +155°C. Compact and robust, these arrays are ideal for precision circuitry requiring stable resistance values and excellent thermal stability.
TTElectronics - Welwyn GBCN164AB1R00F7 Thick Film Resistor Array Specifications:
- Resistance range: 1Ω to 1MΩ
- Power rating @70°C: 250mW
- Overload voltage limit: 100V
- Dielectric withstand voltage: 300V
- Operating temperature: -55°C to +155°C
- Package dimensions: 16mm width, length approx. 40mm, height approx. 0.4mm
- Construction: Ruthenium Oxide resistor on alumina substrate with nickel barrier, tin plating
- Marking: 3-digit for 5% tolerance parts, 4-digit for 1% tolerance parts
- Resistance tolerance: ±5% (3-digit), ±1% (4-digit)
- RoHS compliant, AEC-Q200 qualified
Buy the Buy TT Electronics GBCN164AB1R00F7 Part Number GBCN164AB1R00F7 Online
Purchase the TT Electronics GBCN164AB1R00F7 resistor array online today for high-precision, RoHS-compliant performance. This durable, Pb-free resistor array offers resistance values from 1Ω to 1MΩ, with a 250mW power rating at 70°C and overload voltage of 100V. Its construction features ruthenium oxide on alumina with nickel barrier and tin plating, ensuring excellent thermal stability from -55°C to +155°C. Ideal for demanding electronic circuits requiring reliable and stable resistance in compact form, available now for quick delivery.
Get TT Electronics GBCN164AB1R00F7 resistor array today—designed for stability, high temperature resistance, and long-term reliability.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R00F7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R00F7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R00F7?
You can download the GBCN164AB1R00F7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R00F7?
TTElectronics - Welwyn
