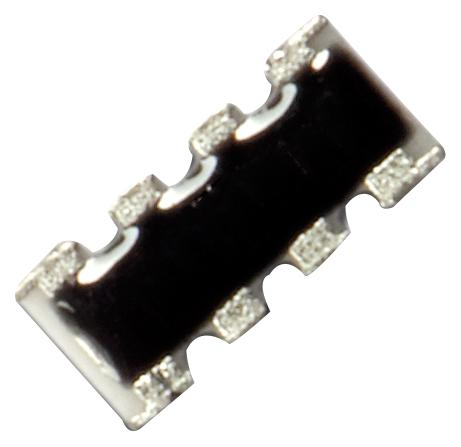

TTElectronics - Welwyn GBCN164AB1R02F7 Green Thick Film Resistor Array
The GBCN Series Green Thick Film Chip Arrays are high-performance, RoHS compliance resistors suitable for precise electronic applications. These arrays feature a Ruthenium Oxide protection resistor on an alumina substrate, with nickel barrier and 100% tin finish, ensuring durability and stability across wide temperature ranges from -55°C to +155°C. Offering resistance values from 1 ohm to 1 megaohm with a 15% tolerance, they are ideal for circuit integration requiring reliable high-temperature operation, low TCR below 100 ppm/°C, and high dielectric withstand voltage. Manufactured with lead-free materials, they meet AEC-Q200 qualifications for automotive standards and are supplied in compact packages with detailed dimensions and markings for easy identification.
TTElectronics - Welwyn GBCN164AB1R02F7 Green Thick Film Resistor Array Specifications:
- Resistance range: 1Ω to 1MΩ
- Power rating @70°C: 63mW
- Package power rating @70°C: 250mW
- Resistance tolerance: 15%
- TCR: <100 ppm/°C
- Operating temperature: -55°C to +155°C
- Dielectric withstand voltage: 300V
- Dimensions: Length 32mm, Width 16mm, Thickness 0.5mm
- Construction: Ruthenium Oxide resistor on alumina substrate, Nickel barrier, 100% Tin finish
- RoHS compliant, AEC-Q200 qualified
Buy the TT Electronics Series GBCN Green Thick Film Chip Arrays: GBCN164AB1R02F7
Purchase the GBCN164AB1R02F7 Green Thick Film Chip Array online today to ensure your projects benefit from high precision, wide temperature operation, and RoHS compliance. These advanced resistor arrays feature a Ruthenium Oxide protection resistor on an alumina substrate with a nickel barrier and tin finish, making them highly durable and suitable for automotive, industrial, and electronic applications. With resistance values from 1 ohm to 1 megaohm, 15% tolerance, and comprehensive specifications, they are ideal for demanding environments. Order now for fast delivery and reliable performance.
Buy TT Electronics GBCN164AB1R02F7 now and experience high reliability and automotive-grade performance in your electronic designs.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R02F7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R02F7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R02F7?
You can download the GBCN164AB1R02F7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R02F7?
TTElectronics - Welwyn
