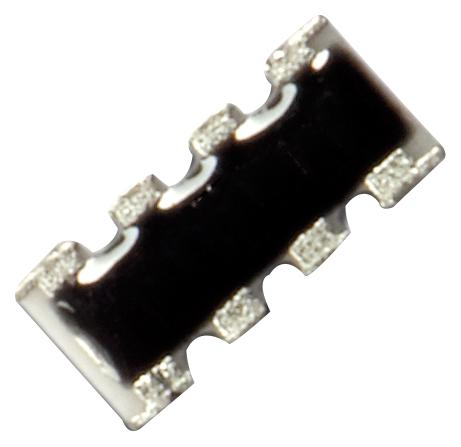

TTElectronics - Welwyn GBCN164AB1R05F7 Green Thick Film Resistor Array
The GBCN Series Green Thick Film Chip Arrays provide high reliability and precision in resistor arrays, suitable for compact electronic applications. Made with ruthenium oxide resistors on alumina substrates, these arrays are RoHS compliant, lead-free, and AEC-Q200 qualified for automotive environments. With a resistance range from 1Ω to 1MΩ, tolerance options of 5% or 1%, and a maximum ambient temperature of 155°C, they deliver excellent performance under cyclic loading, high temperature, humidity, and mechanical shocks. Designed in a compact package with robust terminals, they are ideal for precise, space-saving circuit designs.
TTElectronics - Welwyn GBCN164AB1R05F7 Green Thick Film Resistor Array Specifications:
- Resistance range: 1Ω to 1MΩ
- Resistance tolerance: 5% (significant digits: two digits + zero), 1% (significant digits: three digits + zero)
- Power rating @70°C: 63 mW
- Package power rating @70°C: 250 mW
- Limiting element voltage: 50 V
- Maximum overload voltage: 100 V
- Ambient temperature range: -55°C to +155°C
- Dielectric withstand voltage: 300 V
- Construction: Ruthenium Oxide resistor, alumina substrate, Nickel barrier, 100% Tin plating
- Physical dimensions: Length approximately 16 mm, width 4 mm, thickness 0.5 mm
- Weight: Varies around 40-50 mg
- Circuit construction includes isolated elements with square convex and scalloped square types
- RoHS compliant, lead-free, and AEC-Q200 qualified for automotive use
- Resistors are resistant to solder heat, mechanical shock, vibration, humidity, and solvent exposure, ensuring durability in demanding environments.
Buy the TT Electronics Series GBCN Green Thick Film Resistor Array: GBCN164AB1R05F7
Order the TT Electronics GBCN164AB1R05F7 resistor array online now and benefit from its high reliability, precision resistance, RoHS compliance, and automotive-grade performance. Designed for space-constrained applications, these resistor arrays deliver excellent thermal stability, resistance to environmental factors, and durability in cyclic and high-temperature conditions. Equipped with robust construction and strict standards, they ensure long-term circuit stability and accuracy. Make your electronic designs more efficient by purchasing this top-quality resistor array today, suitable for automotive, industrial, and high-performance electronics.
Get TT Electronics GBCN164AB1R05F7 resistor array today—built for precision and long-lasting durability in advanced electronic circuits.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R05F7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R05F7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R05F7?
You can download the GBCN164AB1R05F7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R05F7?
TTElectronics - Welwyn
