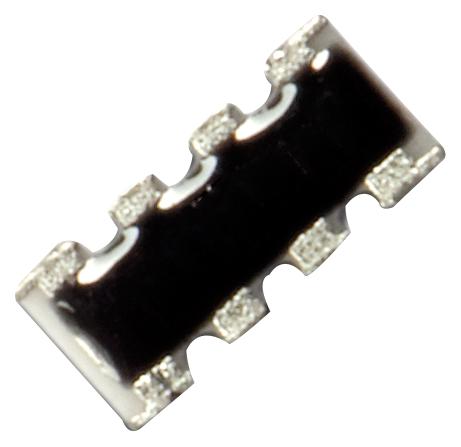

TTElectronics - Welwyn GBCN164AB1R07F7 Resistor Array
The GBCN series Green Thick Film Chip Arrays are RoHS compliant, Pb-free resistors designed for high reliability and stability. These resistor arrays feature a Ruthenium Oxide protection resistor on an alumina substrate, with dimensions approximately 16 mm in width and a package size of 1206. They can handle a power rating of 63 mW at 70°C, with an overall package power rating of 250 mW, and a voltage limit of 50V. Suitable for precision circuit applications, these arrays provide resistance values from 1Ω to 1MΩ with ±15% tolerance, and are qualified to meet AEC-Q200 standards.
TTElectronics - Welwyn GBCN164AB1R07F7 Resistor Array Specifications:
- Dimensions: Length approximately 16 mm, width 16 mm, height approximately 0.5 mm
- Package Power Rating: 250 mW
- Resistor Power Rating @70°C: 63 mW
- Limiting Element Voltage: 50 V
- Maximum Overload Voltage: 100 V
- Resistance Range: 1Ω to 1MΩ
- Resistance Tolerance: ±15%
- Ambient Temperature Range: -55°C to +155°C
- Construction: Ruthenium Oxide resistor, Alumina substrate, Nickel barrier, 100% tin finish
- Dielectric Withstand Voltage: 300 V
- TCR: <100 ppm/°C (typical)
- Marking: 3 digits for 5% tolerance, 4 digits for 1% tolerance
- Compliance: RoHS, Pb-free, AEC-Q200 qualified
Buy the Buy TT Electronics GBCN Series Resistor Array Part Number GBCN164AB1R07F7 Online
Order the TT Electronics GBCN164AB1R07F7 resistor array online today for high-quality, RoHS compliant, Pb-free resistor arrays with a 16 mm width, 1206 package, and resistance values from 1Ω to 1MΩ. Designed for reliability, these arrays handle 63 mW at 70°C, with a package power rating of 250 mW. Perfect for high-precision applications, they are ideal for demanding environments, offering stable performance with industry-standard TCR and resistance tolerance, ensuring durability and consistent electrical performance in your projects.
Get TT Electronics GBCN164AB1R07F7 today—built for high reliability and precision in your electronic circuits.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R07F7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R07F7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R07F7?
You can download the GBCN164AB1R07F7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R07F7?
TTElectronics - Welwyn
