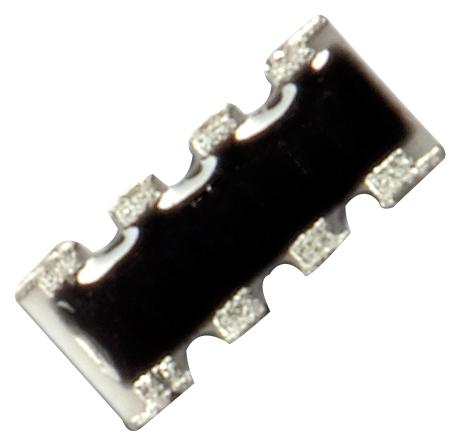

TTElectronics - Welwyn GBCN164AB1R0J7 Green Thick Film Resistor Array
The GBCN Series Green Thick Film Chip Arrays are Pb-free resistor arrays designed for high reliability in electronic circuits. These arrays feature Ruthenium Oxide resistive elements on Alumina substrates, with nickel barrier and tin finishes. They have a resistance range from 1Ω to 1MΩ, with a 15% tolerance, and are RoHS compliant. Capable of operating from -55°C to +155°C, these surface-mount components support voltages up to 50V, ing accommodate cyclic loads, high-temperature operations, and environmental stresses, making them ideal for industrial and automotive applications.
TTElectronics - Welwyn GBCN164AB1R0J7 Green Thick Film Resistor Array Specifications:
- Resistance range: 1Ω to 1MΩ
- Resistance tolerance: 15%
- Power rating @ 70°C: 63 mW
- Package power rating @ 70°C: 250 mW
- Limiting element voltage: 50V
- Maximum overload voltage: 100V
- Operating temperature range: -55°C to +155°C
- Dielectric withstand voltage: 300V
- Construction: Ruthenium Oxide on Alumina
- Material: Nickel Barrier, Tin finish
- Dimensions: Length 16 mm, Width 6 mm, Thickness 0.5 mm
- TCR: <100 ppm/°C
- Standard values: E24 preferred, E96 available
- Solderability: 295% coverage
- Compliance: RoHS, AEC-Q200 qualified
Buy the TT Electronics Series GBCN Green Thick Film Resistor Arrays: GBCN164AB1R0J7
Order TT Electronics GBCN164AB1R0J7 resistor arrays online today for reliable, RoHS-compliant solutions with excellent thermal stability and environmental resistance. These high-quality resistor arrays support a wide resistance range from 1Ω to 1MΩ, feature 15% tolerance for adaptable precision, and are designed to operate efficiently from -55°C to +155°C. Perfect for industrial, automotive, and high-reliability applications, they ensure consistent performance under cyclic load, high temperature, and humidity conditions, backed by rigorous manufacturing standards and comprehensive testing.
Get TT Electronics GBCN164AB1R0J7 today—built for precision, durability, and high-reliability circuit performance.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R0J7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R0J7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R0J7?
You can download the GBCN164AB1R0J7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R0J7?
TTElectronics - Welwyn
