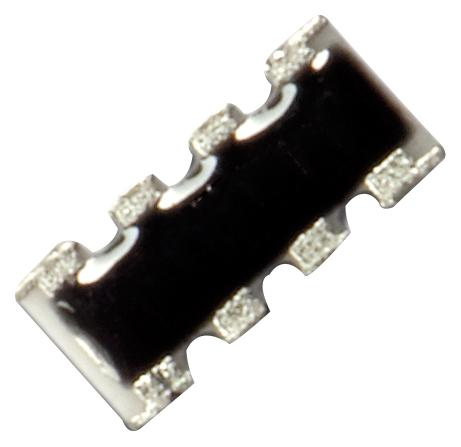

TTElectronics - Welwyn GBCN164AB1R20F7 Green Thick Film Chip Array
The GBCN Series Green Thick Film Chip Arrays are RoHS compliant, lead-free resistor arrays suitable for high-density applications. These resistor arrays feature ruthenium oxide protection on a ceramic alumina substrate with nickel barrier and tin-plated contacts, offering a resistance range of 1Ω to 1MΩ with 15% tolerance. Designed for reliability, they withstand voltages up to 50V, overloads of 100V, and operate from -55°C to +155°C. Suitable for densely packed electronic circuits requiring precise and stable resistance values with robust construction.
TTElectronics - Welwyn GBCN164AB1R20F7 Green Thick Film Chip Array Specifications:
- Resistance range: 1Ω to 1MΩ
- Tolerance: 15%
- Power rating: 63mW at 70°C
- Package power rating: 250mW at 70°C
- Voltage: Limiting element voltage 50V, maximum overload voltage 100V
- Operating temperature: -55°C to +155°C
- Construction: Ruthenium oxide resistor, alumina substrate, nickel barrier, tin-plated contacts
- Dimensions: Length 16mm, Width 3.2mm, Thickness 0.5mm, Weight approximately 401-402mg
- Test conditions: Load life 1000 hrs at 70°C, temperature cycling -55°C to +155°C, resistance to solder heat, vibration, mechanical shock, and humidity
- Marking: 3-digit for 5%, 4-digit for 1% tolerance, on individual parts
- Compliance: RoHS, AEC-Q200 qualified, lead-free, EU Directive 2011/65/EU
Buy the TT Electronics Series GBCN Green Thick Film Chip Arrays: GBCN164AB1R20F7
Order the TT Electronics GBCN164AB1R20F7 resistor array online now for high-quality, RoHS compliant components suitable for compact electronic circuits. These lead-free arrays feature a resistance range from 1Ω to 1MΩ, tolerance options of 5% or 1%, and operate efficiently from -55°C to +155°C. Built with durable ruthenium oxide on ceramic substrates, they provide excellent stability, high overload voltage capacity, and resistance to harsh environments. Perfect for manufacturers aiming for reliable, space-saving, and environmentally friendly resistors in their designs.
Get TT Electronics GBCN164AB1R20F7 resistor arrays today—designed for dense circuit boards, high reliability, and long-lasting performance.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R20F7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R20F7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R20F7?
You can download the GBCN164AB1R20F7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R20F7?
TTElectronics - Welwyn
