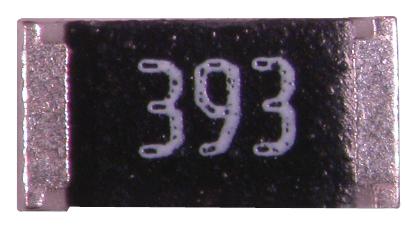

TTElectronics - Welwyn GWCR060310MFT5 Thick-Film Chip Resistor
The GWCR series green thick-film chip resistors are RoHS compliant and free of Pb and its compounds, suitable for industrial and electronic applications. They feature high alumina substrates with ruthenium oxide resistance elements and silver palladium, nickel, and tin-plated terminations. Available in sizes from 01005 to 2512, these resistors offer resistance values from 1 ohm to 10 megaohms with tolerance up to 1%. They are rated for power from 0.031W to 1W depending on size and voltage limits up to 250V. Their construction ensures excellent solderability, dielectric withstanding voltage, and resistance to industrial cleaning fluids, making them ideal for precision electronic circuits.
TTElectronics - Welwyn GWCR060310MFT5 Thick-Film Chip Resistor Specifications:
- Size range: 01005 to 2512
- Resistance Range: 1Ω to 10MΩ
- Power Rating @ 70°C: 0.031W to 1W depending on size
- Limiting Voltage: up to 250V
- Tolerance: ±1%
- Resistance Tolerance: 1%
- Ambient Temperature Range: -55°C to 155°C
- Dielectric Withstand Voltage: up to 500V
- Material: Alumina substrate (minimum 96%) with ruthenium oxide resistance element
- Terminations: Silver palladium, nickel, and tin-plated
- Marking: 3 or 4 digits, 'R' for decimal, ‘O’ for zero ohm jumper
- Solderability: Meets IEC 115-1
- Protection: Glazed coating for resistive element, resistant to cleaning fluids
- Packaging: Sizes 01005 to 1210 in 8mm tape, sizes 1812 to 2512 in 12mm tape, on 178mm reels
Buy the TT Electronics GWCR060310M – Reliable Thick-Film Chip Resistors for Industrial Applications
Purchase TT Electronics GWCR060310M thick-film chip resistor online today and ensure reliable performance in your industrial and electronic projects. These resistors feature RoHS compliance, high alumina substrates, and ruthenium oxide resistive elements for outstanding stability and accuracy. Suitable for a wide range of resistance values, from 1 ohm to 10 megaohms, with tight ±1% tolerance, they deliver high performance under extreme temperatures. Packaged in convenient reels for automated assembly, these resistors are resistant to industrial cleaning fluids, guaranteeing durability and long-term stability in your designs.
Get TT Electronics GWCR060310M today—built for precision, high reliability, and resistance to industrial environments with excellent thermal performance.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GWCR060310MFT5?
You can click on the BUY or RFQ button to purchase GWCR060310MFT5 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GWCR060310MFT5?
You can download the GWCR060310MFT5 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GWCR060310MFT5?
TTElectronics - Welwyn
