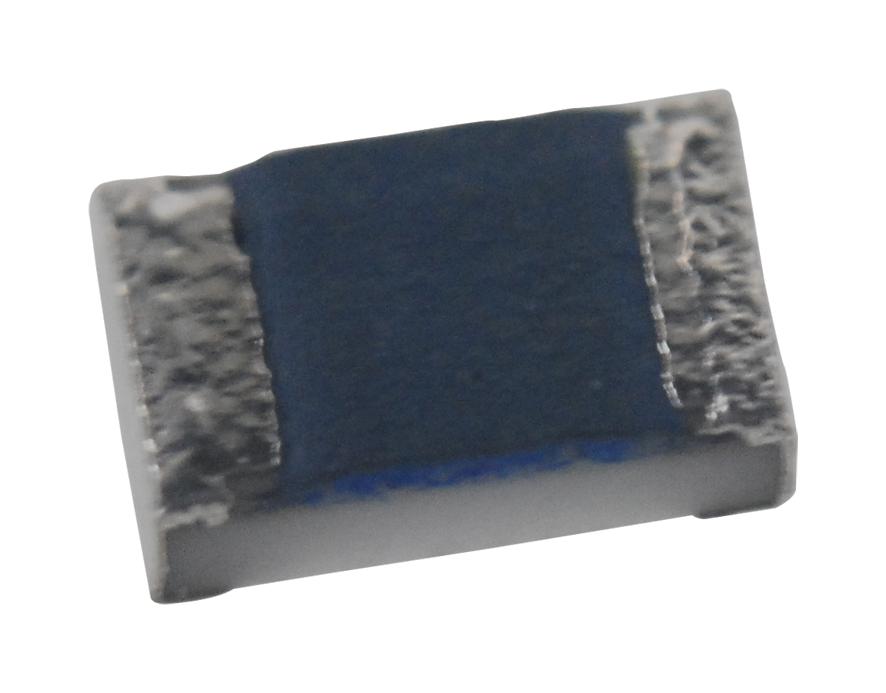

TTElectronics - Welwyn HR0805F100MJI High Resistance Surface Mount Resistor
The high value surface-mounted resistor series offers custom designs with resistance ranges up to 50 gigaohms, suitable for precise applications requiring low power dissipation. These RoHS-compliant resistors feature gold planar terminations for reliable soldering or wire bonding, with sizes from 0503 to 1206. They withstand voltages up to 500V and operate within -55°C to +155°C. The HR series ensures high stability with low TCR, and is ideal for automatic mounting in industrial electronics, offering excellent solderability, insulation, and broad resistance tolerances from 5% to 50%. Perfect for high resistance applications demanding robustness and durability.
TTElectronics - Welwyn HR0805F100MJI High Resistance Surface Mount Resistor Specifications:
- Resistance range: 10M to 50G ohms
- Power rating: Determined by voltage, max voltage 500V
- Voltage proof: 50 to 500V depending on size
- Temperature range: -55°C to +155°C
- Resistance tolerance: 5%, 10%, 25%, 50%
- Resistance Coefficient of Resistance (TCR): 0 to -2500 ppm/°C depending on size
- Physical sizes: 0503, 0603, 0805, 1005, 1206
- Terminations: Gold planar, wrap-around, solderable
- Construction: Screen printed onto alumina substrate with organic coating
- Solderability: Good, withstands immersion at 260°C for 30s
- Application: Suitable for automatic mounting, wire bonding, high voltage stability, low dissipation
- Compliance: RoHS, EU Directive 2011/65/EU
- Shelf life: 12 months at ambient conditions
- Storage: Keep dry to avoid leakage
Buy the TT Electronics HR Series High Resistance Surface Mount Resistors – Reliable Industrial Components
Order TT Electronics HR Series high resistance surface mount resistors today and enjoy reliable performance with resistance up to 50 gigaohms. These RoHS-compliant components feature gold planar terminations, excellent solderability, and stability across a wide temperature range. Perfect for automated assembly, high voltage stability, and demanding industrial environments, they are available in various sizes including 0503, 0603, and 1206. Secure your supply chain by purchasing online now—these resistors are essential for high resistance, precision electronic projects requiring robustness and longevity.
Buy TT Electronics HR Series high resistance surface-mounted resistors now and experience unmatched durability and precision for industrial applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn HR0805F100MJI?
You can click on the BUY or RFQ button to purchase HR0805F100MJI from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part HR0805F100MJI?
You can download the HR0805F100MJI datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of HR0805F100MJI?
TTElectronics - Welwyn
