TTElectronics - Welwyn HVC20101G0JT18 High Voltage Resistor
The Welwyn HVC series resistors are high-voltage surface-mount resistors utilizing thick film technology. They feature resistance values ranging from 10 kilo-ohms to 1 gigaohm, available in E24 and E96 decade values. These resistors are constructed with a resistive thick film layer, overglaze, and organic protective coating, all screen-printed on a 96% alumina substrate. They come with wrap-around, solderable terminations with an electroplated nickel barrier and tin finish, providing excellent leach resistance and solderability. Sizes 1206, 1210, and 2512 support voltages up to 4kV and power ratings of 0.3W to 1W at 70°C. Resistance tolerances range from ±0.5% to ±10%, with optional TCR of ±50ppm/°C or ±100ppm/°C, making them ideal for high-voltage applications, demanding reliability, and performance in electronic circuits.
TTElectronics - Welwyn HVC20101G0JT18 High Voltage Resistor Specifications:
- Sizes: 1206, 1210, 2512
- Resistance Range: 10KΩ to 1GΩ
- Resistance Tolerance: ±0.5%, 1%, 2%, 5%, 10%
- TCR: ±50ppm/°C or ±100ppm/°C
- Power Ratings @ 70°C: 0.3W, 0.5W, 1W
- Limiting Element Voltage: 1000V, 2000V, 3000V
- Overload Voltage: Up to 4kV
- Construction: Thick film on alumina substrate
- Terminations: Wrap-around, nickel barrier with tin finish
- Operating Temperature Range: -55°C to +155°C
- Solderability: Excellent with electroplated nickel barrier and tin finish
- Resistance Values: E24 & E96 preferred, custom values available
- Durability: 1000 hours at rated load @ 70°C, withstands solder heat, high reliability in electronic circuits

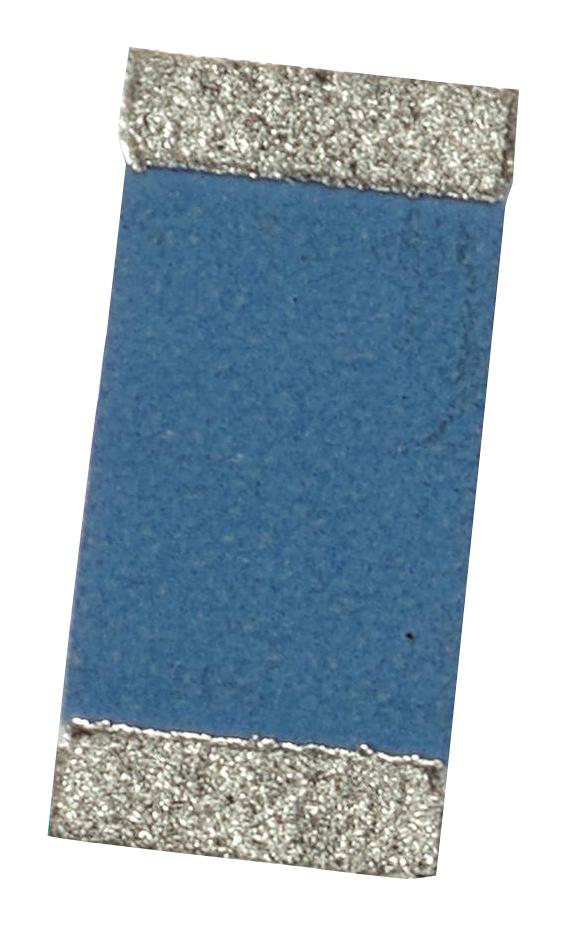

Buy the Welwyn Series HVC High Voltage Resistors: HVC20101G0JT18
Discover the reliability and high-performance of Welwyn's HVC series high-voltage resistors designed for demanding electronic applications. With voltages up to 4kV, resistance values spanning from 10KΩ to 1GΩ, and sizes 1206, 1210, and 2512, these resistors deliver exceptional durability and accuracy. Crafted with thick film technology on alumina substrates, they feature wrap-around terminations for easy soldering and reliable connections. Perfect for high-voltage, high-reliability environments, these resistors support electronic circuit stability and safety. Order online now to keep your projects running problem-free with superior components that meet professional standards.
Order your Welwyn Series HVC high-voltage thick film resistor today and ensure your electronic circuits operate with maximum reliability and performance.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn HVC20101G0JT18?
You can click on the BUY or RFQ button to purchase HVC20101G0JT18 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part HVC20101G0JT18?
You can download the HVC20101G0JT18 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of HVC20101G0JT18?
TTElectronics - Welwyn
