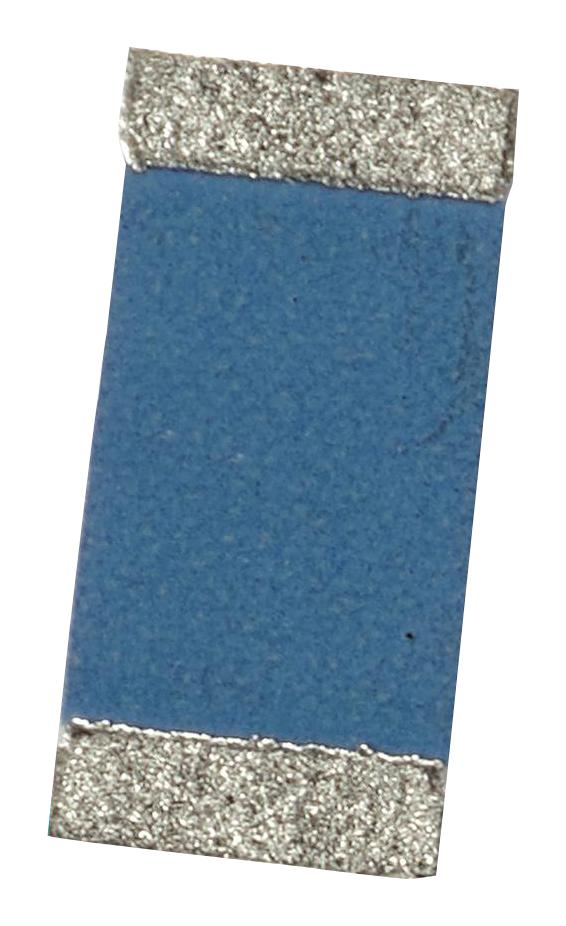

TTElectronics - Welwyn HVC2512100MFT18 High Voltage Chip Resistor
The Welwyn HVC series resistors are high-voltage surface-mount resistors based on thick film technology. They feature resistance values ranging from 10kΩ to 1GΩ, compatible with E24 and E96 decades. Constructed on a 96% alumina substrate with screen-printed resistive thick film material, overglaze, and organic protection, these chips are supplied with wrap-around solderable terminations featuring an electroplated nickel barrier and tin finish. This design ensures excellent leach resistance and solderability. The resistors are available in standard chip sizes of 1206, 1210, and 2512, with limiting element voltages of 1000V, 2000V, and 3000V respectively, and power ratings from 0.3W to 1W at 70°C. They offer various tolerances from ±0.5% to ±10% and TCR options of ±50ppm/°C and ±100ppm/°C. These robust resistors can withstand overload voltages up to 4kV and include an anti-sulphur version. Designed for automated handling thanks to their rectangular shape and tight tolerances. Note: Delivery may be delayed due to high market demand, and the product is exempt from discounts.
TTElectronics - Welwyn HVC2512100MFT18 High Voltage Chip Resistor Specifications:
- Resistance range: 10kΩ to 1GΩ
- Constructed on 96% alumina substrate
- Resistive material: thick film with overglaze and organic protection
- Terminations: wrap-around solderable with nickel barrier and tin finish
- Sizes: 1206, 1210, 2512
- Limiting element voltage: 1000V, 2000V, 3000V respectively
- Power ratings: 0.3W to 1W at 70°C
- Tolerance: ±0.5% to ±10%
- TCR: ±50ppm/°C and ±100ppm/°C
- Overload voltage: up to 4kV
- Construction: anti-sulphur and RoHS compliant
- Operating temperature range: -55°C to +125°C
Buy the Buy TT Electronics HVC Series High Voltage Chip Resistors Part Number HVC2512100MFT18 Online
Order TT Electronics high voltage chip resistors online to ensure top-notch quality, robust construction, and precise electrical performance. Perfect for high-voltage applications, these surface-mount resistors offer resistance values up to 1GΩ, with limiting voltages of up to 4kV. Designed for automated assembly with tight dimensional tolerances, their anti-sulphur construction ensures durability in harsh environments. Available in standard sizes 1206, 1210, and 2512, they deliver reliable operation with power ratings up to 1W at 70°C. Secure your supply today for consistent high-voltage performance.
Buy TT Electronics HVC2512100MFT18 high-voltage resistors now and experience unmatched reliability and performance in demanding applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn HVC2512100MFT18?
You can click on the BUY or RFQ button to purchase HVC2512100MFT18 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part HVC2512100MFT18?
You can download the HVC2512100MFT18 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of HVC2512100MFT18?
TTElectronics - Welwyn
