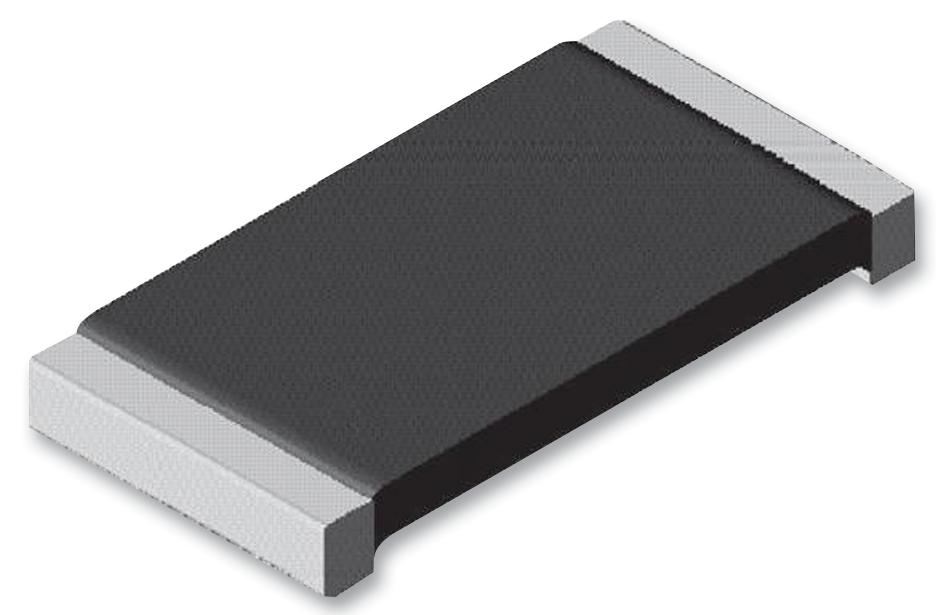

TTElectronics - Welwyn LCS06031R0FT5 Current Sense Resistor
The LCS Series low value current sense thin film chip resistors are engineered for precise current measurement in electronic systems. Featuring high accuracy, stability, and anti-sulfur construction, these resistors are made using specialized thin film technology deposited on alumina substrates, with laser trimming for resistance accuracy. Available in sizes from 0603 to 2512, they offer resistance values down to R10 (100mΩ), with exceptional TCR and power ratings. Suitable for demanding industrial applications, they comply with RoHS standards and are packaged on tape for automated assembly.
TTElectronics - Welwyn LCS06031R0FT5 Current Sense Resistor Specifications:
- Resistance range: R20-1RO R10-1R0
- Power rating at 70°C: 0.125 W (0603), 0.25 W (0805), 0.5 W (1206), 1.0 W (2010, 2512)
- Resistance tolerances: ±0.5%, ±1%, ±5%
- TCR: <R30: +100 ppm/°C, R30-1R0: 450 ppm/°C
- Limiting element voltage: 50V (0603), 100V (0805), 150V (1206, larger sizes)
- Maximum temperature: -55°C to +155°C
- Dimensions: 1.60 x 0.80 mm (0603), 2.00 x 1.25 mm (0805), 3.05 x 1.55 mm (1206), 4.9 x 2.0 mm (2010), 6.32 x 3.2 mm (2512)
- Physical construction: Thin film deposited on alumina substrate, laser trimmed, plated with nickel and tin
- Termination: Standard 100% Sn matte plated wrap-around, also available SnPb 60/40
- Compliance: RoHS3, lead-free
- Packaging: Tape on reels; 5000 units for 0603, 3000 for 0805/1206, 1800 for 2010/2512
Buy the TT Electronics RCS Series – Reliable Current Sense Resistors for Industrial Applications
Order TT Electronics RCS Series current sense resistors online today to ensure precise current measurement in your electronic circuits. These high-accuracy thin film resistors feature low resistance values down to 100 milliohms, excellent temperature stability, and RoHS compliance. Available in multiple sizes from 0603 to 2512, they are packaged on reels suitable for automated assembly. Their robust construction, high voltage ratings, and strict tolerance make them ideal for industrial electronics, power management, and sensitive measurement applications. Purchase now for reliable, long-lasting performance.
Buy TT Electronics RCS Series low value current sense resistors now and experience unmatched accuracy, stability, and reliable performance in your industrial systems.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LCS06031R0FT5?
You can click on the BUY or RFQ button to purchase LCS06031R0FT5 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LCS06031R0FT5?
You can download the LCS06031R0FT5 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LCS06031R0FT5?
TTElectronics - Welwyn
