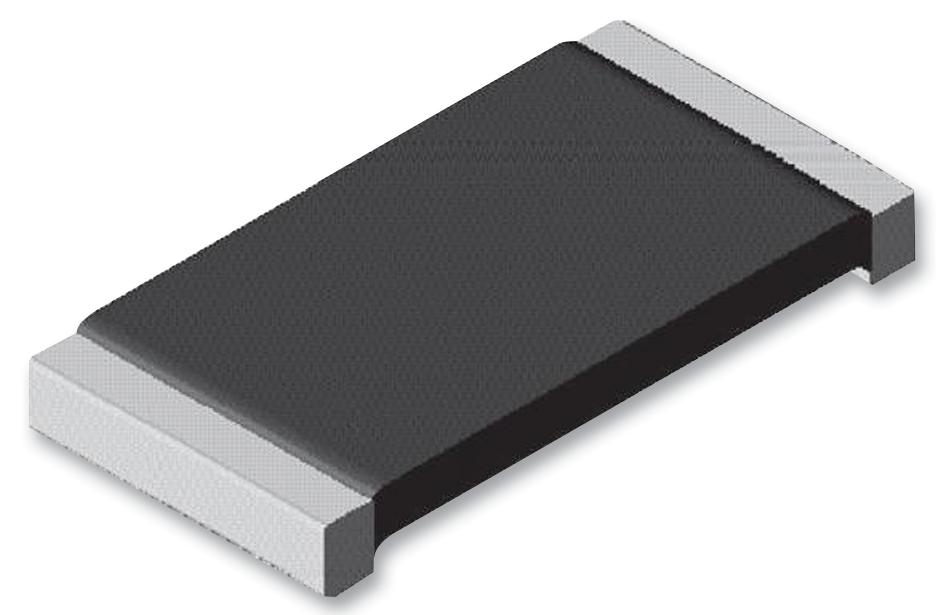

TTElectronics - Welwyn LCS1206R75FT3 Current Sense Resistor
The LCS series features low value current sense thin film chip resistors designed for accurate current sensing in electronic systems. Manufactured with a thin-film technology on alumina substrates, these resistors offer precise resistance values down to R10 (100mΩ), with resistance tolerances as tight as ±0.5% and temperature coefficients of ±50 ppm/°C. They are available in various sizes including 0603, 0805, 1206, 2010, and 2512, and feature robust wrap-around tin or SnPb terminations suitable for soldering. Their high stability and anti-sulfur construction make them ideal for demanding applications, with compliance to RoHS standards.
TTElectronics - Welwyn LCS1206R75FT3 Current Sense Resistor Specifications:
- Resistance range: R20-1RO for smaller sizes, R10-1R0 for larger sizes
- Power rating at 70°C: 0.125W to 1.0W depending on size
- Maximum limiting voltage: 50V to 150V depending on size
- TCR: <R30: +100 ppm/°C, >R30: 450 ppm/°C
- Resistance tolerance: 0.5%, 1%, 5%
- Ambient temperature range: -55°C to +155°C
- Dimensions: 1.60x0.8mm (0603), 2.0x1.25mm (0805), 3.05x1.55mm (1206), 4.9x2.0mm (2010), 6.32x3.2mm (2512)
- Construction: Thin film deposited on alumina substrate with laser-trimmed resistance values
- Terminations: Sn matte plated wrap-around; SnPb available
- Compliance: RoHS 3, EU Directive 2011/65/EU
- Packaging: On plastic carrier tapes, reels of 5000 or 3000 units depending on size
Buy the Buy TT Electronics LCS1206R75FT3 Part Number R75 for Precision Current Sensing Online
Purchase the TT Electronics Series1206 R75 resistor online today for high-accuracy current sensing in electronic circuits. Designed with advanced thin film technology, it offers tight resistance tolerance of ±0.5%, a low temperature coefficient of ±50 ppm/°C, and a wide temperature range from -55°C to +155°C. Its robust wrap-around nickel and tin plating ensures excellent solderability, durability, and resistance to harsh environmental conditions. Ideal for power management and precision current measurement applications, this resistor guarantees dependable performance and compliance with RoHS regulations.
Order your TT Electronics Series1206 R75 resistor today and ensure precise current measurement with reliable thin film technology.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LCS1206R75FT3?
You can click on the BUY or RFQ button to purchase LCS1206R75FT3 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LCS1206R75FT3?
You can download the LCS1206R75FT3 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LCS1206R75FT3?
TTElectronics - Welwyn
