TTElectronics - Welwyn LCS2512R30FT18 Low Value Current Sense Resistor
The LCS2512 R30FT18 is a precision low value current sensing thin film chip resistor designed for accurate current measurement in electronic systems. Constructed with a selective thin-film material on a 96% alumina substrate, it features wrap-around nickel/tin plated terminations for reliable soldering. With a resistance range of R20 to 1Ω and a TCR of ±50 ppm/°C, this resistor offers high stability, low power ratings up to 1W at 70°C, and excellent performance under cyclic load, overload, and temperature rapid change conditions. It complies with RoHS3 standards and guarantees durability in demanding environments.
TTElectronics - Welwyn LCS2512R30FT18 Low Value Current Sense Resistor Specifications:
- Resistance Range: R20-1Ω
- Power Rating at 70°C: 1W
- Limiting Element Voltage: 50V to 150V depending on size
- Resistance Tolerance: 0.5%, 1%, 5%
- Temperature Coefficient: ±50 ppm/°C
- Size: 2512 (6.3 x 3.2 mm)
- Construction: Thin film on alumina substrate with nickel/tin plated wrap-around terminations
- Ambient Temperature Range: -55°C to +155°C
- Maximum Soldering Temperature: 260°C for 10s
- Insulation Resistance: >1000 MΩ
- Compliance: RoHS3, EU Directive 2011/65/EU
- Physical Dimensions: Length 6.3 mm, Width 3.2 mm, Height 0.55 mm
- Markings: Marked with up to four characters indicating resistance value

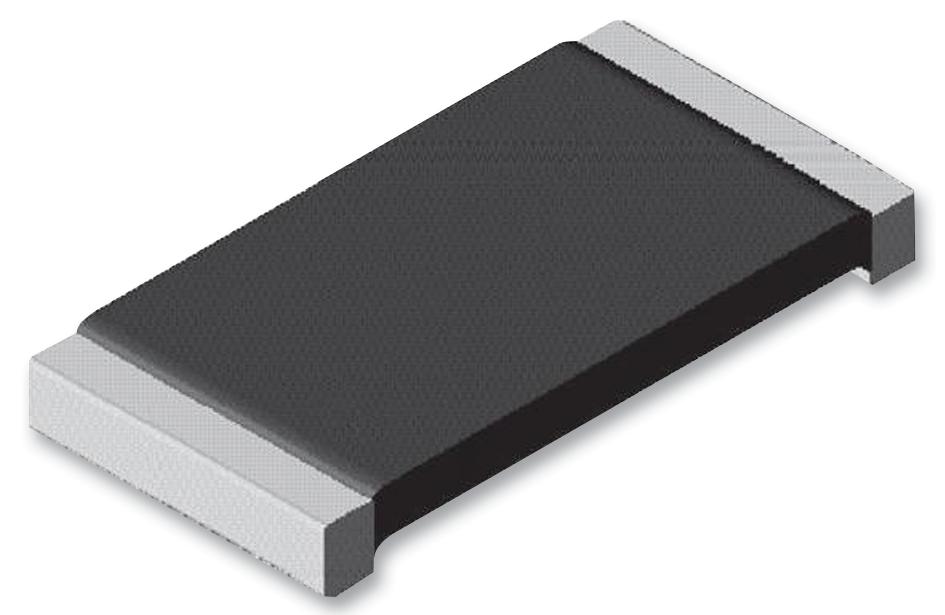

Buy the Buy TT Electronics LCS2512 Part Number R30FT18 Online
Purchase the TT Electronics LCS2512 R30FT18 now and enhance your electronic system’s accuracy with this high-precision, RoHS-compliant thin film resistor. Its stable resistance, excellent thermal performance, and reliable soldering terminations make it ideal for current measurement, power management, and precision circuitry. Available on fast delivery, this resistor ensures durability and consistent performance under cyclic load, overload, and temperature variations. Get yours today for optimal electronic system reliability and precision measurement needs.
Buy TT Electronics LCS2512 R30FT18 now and experience unmatched reliability and precision in current sensing for your electronic applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LCS2512R30FT18?
You can click on the BUY or RFQ button to purchase LCS2512R30FT18 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LCS2512R30FT18?
You can download the LCS2512R30FT18 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LCS2512R30FT18?
TTElectronics - Welwyn
