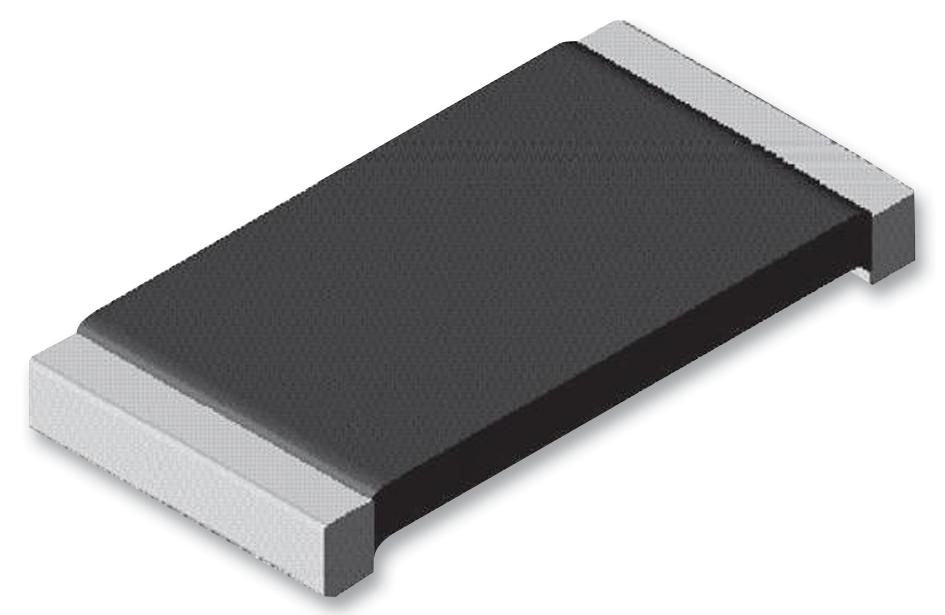

TTElectronics---Welwyn LCS2512R47FT18 Low-Value Thin Film Chip Resistor
The LCS Series consists of low-value, high-precision thin film chip resistors designed for accurate current sensing in electronic systems. They feature a wide resistance range down to R10 (100mΩ), with tight tolerance of ±0.5%, and a low TCR of +50 ppm/°C, ensuring stability over temperature variations. These resistors are constructed on a ceramic substrate with laser trim for resistance accuracy, wrapped with nickel and tin plating for soldering. They meet RoHS standards and are suitable for high-reliability applications requiring precise resistance values and thermal stability.
TTElectronics---Welwyn LCS2512R47FT18 Low-Value Thin Film Chip Resistor Specifications:
- Resistance Range: R20-1Ω for R20, R10-1Ω for R10
- Power Rating at 70°C: 0.125 W to 1.0 W depending on size
- Limiting Element Voltage: 50V for smaller sizes, up to 150V for larger sizes
- Resistance Tolerance: ±0.5%, 1%, 5%
- Temperature Coefficient of Resistance: <R30: +100 ppm/°C, R30: 450 ppm/°C
- Temperature Range: -55°C to +155°C
- Physical Dimensions: 0603 (1.60±0.2 mm x 0.80±0.2 mm), 0805 (2.00±0.2 mm x 1.25±0.2 mm), 1206 (3.05 mm x 1.55 mm), 2010 (4.9 mm x 2.0 mm), 2512 (6.3 mm x 2.0 mm)
- Termination: 100% Sn matte plated, wrap-around for soldering, optional SnPb 60/40
- Reliability: Rated for cyclic load at 70°C, short overload, high temp operation, and damp heat conditions, with resistance to solder heat and insulation resistance >1000 MΩ
Buy the Buy TT Electronics LCS Series Low-Value Chip Resistor Part Number LCS2512R47FT18 Online
Purchase the TT Electronics LCS Series low-value thin film chip resistor online today. Designed for precision current sensing, these resistors offer R10 to R20 ohms, ±0.5% tolerance, and excellent thermal stability. Perfect for high-reliability electronic systems, they feature robust construction on ceramic substrates with laser trimming for precise resistance values, wrapped in nickel and tin plating for easy soldering. Ensure your project's success by choosing these RoHS-compliant, high-performance resistors available for quick online ordering and reliable delivery.
Buy TT Electronics LCS2512R47FT18 now and experience unmatched precision and thermal stability for your current sensing applications.
Frequently Asked Questions
Where can I buy TTElectronics---Welwyn LCS2512R47FT18?
You can click on the BUY or RFQ button to purchase LCS2512R47FT18 from an authorized TTElectronics---Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LCS2512R47FT18?
You can download the LCS2512R47FT18 datasheet or visit the TTElectronics---Welwyn website for support.
Who is the manufacturer of LCS2512R47FT18?
TTElectronics---Welwyn
