TTElectronics - Welwyn LRF1206R020FW Low Value Flat Chip Resistor
The Low Value Flat Chip Resistor in the LR Series offers resistance values down to 0.003 ohms, with high precision, leach-resistant solder-plated copper wrap-around termination, and is AEC-Q200 qualified. Available in standard sizes 2512, 2010, and 1206, it features a copper termination, nickel barrier layer, and alumina substrate, suitable for high-current applications and environments demanding stability and reliability. RoHS compliant with variants that include SnPb finish, these resistors are optimal for high-temperature and cyclic load conditions, making them ideal for precision electronic circuits and power management systems.
TTElectronics - Welwyn LRF1206R020FW Low Value Flat Chip Resistor Specifications:
- Resistance range: R003 to 1RO
- Resistance tolerance: <RO1:5%, 2RO1:1%, 2.5%
- Dielectric withstand volts: 200V
- Ambient temperature range: -55°C to +150°C
- Temperature rise at rated power: 40°C, 80°C, 90°C
- Physical dimensions (mm): LR1206 3.2×0.305, LR2010 5.2×0.38, LR2512 6.5×3.25 +0.38
- Material: Copper wrap-around termination, nickel barrier layer, alumina substrate
- Soldering standards: RoHS compliant, SnPb variants available
- Packaging: Tape and reel, 3000/reel for 2512, 1200/reel for 2010, 3000/reel for 1206
- Qualification: AEC-Q200; suitable for high-temp, cyclic, vibration, moisture resistance

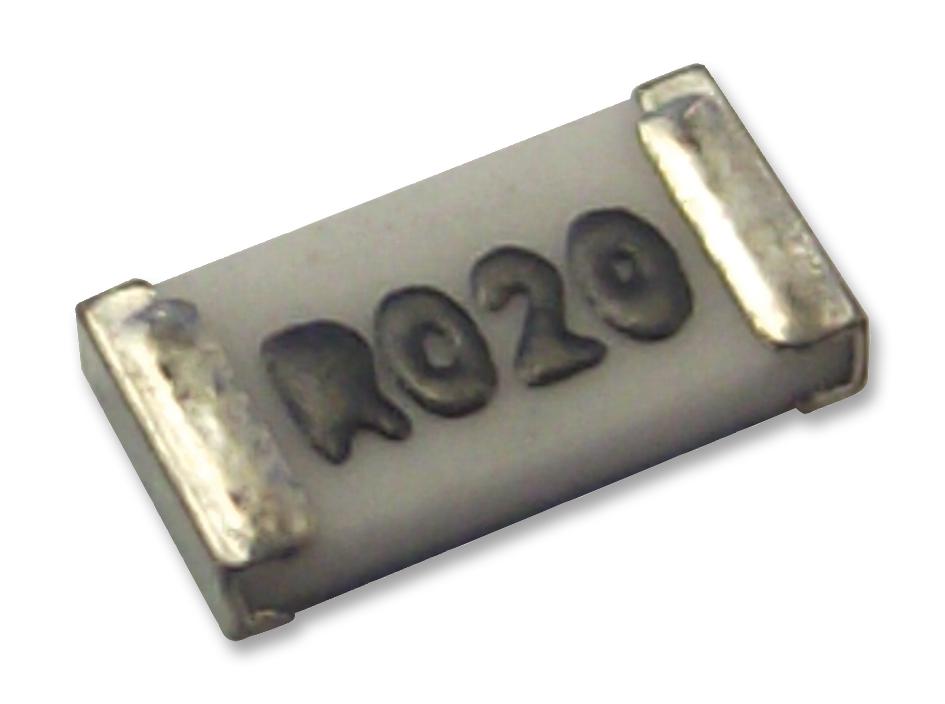

Buy the Buy TT Electronics Low Value Flat Chip Resistors Part Number LRF1206R020FW Online
Discover the high-precision Low Value Flat Chip Resistor from TT Electronics, designed for high-current, high-reliability applications. With resistance values down to 0.003 ohms and sizes 1206, 2010, and 2512, it features robust copper wrap-around termination, RoHS compliance, and excellent thermal stability. Ideal for high-temperature environments and cyclic loads, this resistor meets strict industry standards like AEC-Q200, making it perfect for power supplies, automotive, and industrial electronics. Purchase online today for quality and dependable performance.
Order your TT Electronics SeriesLRF1206R020FW high-precision resistor today and ensure reliable performance in your power management circuits.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRF1206R020FW?
You can click on the BUY or RFQ button to purchase LRF1206R020FW from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRF1206R020FW?
You can download the LRF1206R020FW datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRF1206R020FW?
TTElectronics - Welwyn
