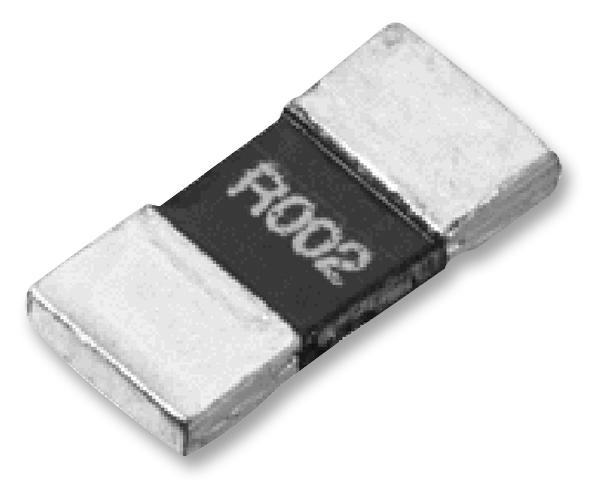

TTElectronics - Welwyn LRMAN0815R02FT4 Low Resistance Alloy Resistor
The Low Resistance Metal Alloy Resistor of the LRMA series is designed for current sensing and high power applications in power electronics. It features resistance values from 0.5mQ to 500mQ, high temperature operation up to 170°C, and RoHS compliance. Available in various sizes including 0805, 1206, 2512, among others, these resistors are constructed with copper electrodes, nickel, and tin plating, ensuring durability and low thermal EMF. Suitable for both wave and IR reflow soldering, they provide excellent performance in demanding electronic environments.
TTElectronics - Welwyn LRMAN0815R02FT4 Low Resistance Alloy Resistor Specifications:
- Resistance range: 0.5mQ to 500mQ
- Size options: 0805, 1206, 2512, 1225, 0612, 2010, 2512
- Power rating @70°C: 1W to 3W depending on size and version
- Resistance tolerance: ±0.5%, ±1.0%
- Temperature coefficient (TCR): ±50 ppm/°C to ±475 ppm/°C depending on variant
- Maximum operating temperature: 170°C
- Insulation resistance: >100MΩ
- Construction: Copper electrode with nickel and tin plating, resistance alloy plate
- Marking: Ohmic value indicated with alphanumeric codes
- Soldering: Suitable for wave and IR reflow, peak temperature 255°C to 260°C
- RoHS compliant and halogen free, suitable for high-voltage and noise-sensitive applications
- Dimensions vary with size; detailed in datasheet, e.g., 0805: 2.0 x 1.0 x 0.6mm, 2512: 6.4 x 3.2 x 1.3mm
Buy the TT Electronics Series LRMA Low Resistance Resistor: LRMAN0815R02FT4
Order the TT Electronics Low Resistance Alloy Resistor from our online store today. These resistors are ideal for current sensing, power management, and noise reduction in electronic circuits. Available in various sizes with resistance values up to 500mQ, they feature high temperature operation to 170°C, RoHS compliance, and suitability for wave and IR reflow soldering. Enhance your electronic projects with proven durability, low thermal EMF, and excellent performance in demanding environments. Purchase now for fast delivery and reliable quality.
Buy TT Electronics LRMA series low resistance resistor now and experience unmatched reliability and performance in your power electronics designs.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRMAN0815R02FT4?
You can click on the BUY or RFQ button to purchase LRMAN0815R02FT4 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAN0815R02FT4?
You can download the LRMAN0815R02FT4 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRMAN0815R02FT4?
TTElectronics - Welwyn
