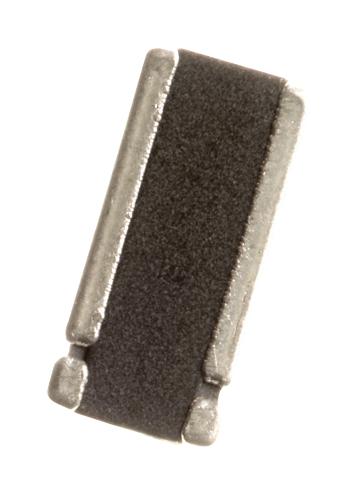

TTElectronics - Welwyn LRMAN1225R004FT1 Low Resistance Resistor
The LRMAN1225R004FT1 is a low resistance metal alloy resistor designed for high-temperature power electronics applications. It features a resistance range from 0.5mQ to 300mQ, RoHS compliance, and is suitable for wave and IR reflow soldering. The resistor offers excellent stability, low thermal EMF, and is constructed with Cu-Ni alloy elements. Its compact 1225 size enables use in space-constrained designs, with high power ratings and endurance against humidity, temperature cycling, and solder heat. Ideal for current sensing with robust performance in demanding environments.
TTElectronics - Welwyn LRMAN1225R004FT1 Low Resistance Resistor Specifications:
- Size: 1225
- Resistance range: 0.5mQ to 300mQ
- Power rating at 70°C: 1.5W
- Overload rating (5s): 10W
- Resistance tolerance: ±1%, ±5%
- Temperature Range: -55°C to 170°C
- Resistance TCR (25 to 125°C): ±100 ppm/°C
- Insulation resistance: >100MΩ
- Element material: Cu-Ni alloy
- Marking: Ohmic value marked, e.g., 'ROO4' for 4mQ
- Construction: Copper electrode, nickel-tin plating
- Compliance: RoHS, halogen free
- Suitable for wave and IR reflow soldering with specific profiles
- Resistant to industrial solvents and solder heat
Buy the TT Electronics Series LRMA Low Resistance: LRMAN1225R004FT1
Purchase the TT Electronics LRMA Series low resistance resistor online now to ensure high stability and durability in your power electronic applications. With resistance values ranging from 0.5mQ to 300mQ, RoHS compliance, and robust construction using Cu-Ni alloy, this resistor is ideal for high-temperature environments, current sensing, and demanding precision tasks. Its compact size, excellent thermal stability, and resistance to humidity and solder heat make it perfect for space-constrained assemblies and reliable operation in industrial and automotive electronics. Buy now to upgrade your power management solutions with precision, quality, and confidence.
Order your TT Electronics Series LRMA low resistance resistor today and ensure reliable current sensing and power management in your electronic projects.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRMAN1225R004FT1?
You can click on the BUY or RFQ button to purchase LRMAN1225R004FT1 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAN1225R004FT1?
You can download the LRMAN1225R004FT1 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRMAN1225R004FT1?
TTElectronics - Welwyn
