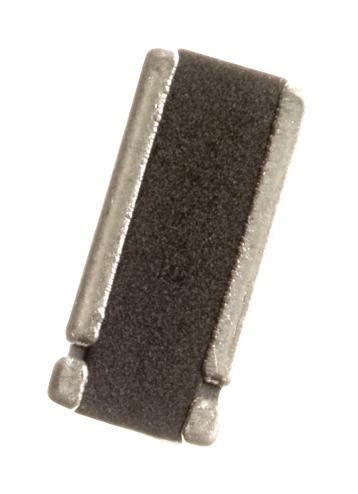

TTElectronics---Welwyn LRMAN1225R15FT1 Low Resistance Metal Alloy Resistors
The resistor series offers low resistance values from 0.5mΩ to 300mΩ, designed for high temperature operation up to 170°C and low thermal EMF. Suitable for current sensing in power electronics, these RoHS compliant, halogen-free resistors meet AEC-Q200 qualifications. Available in various sizes like 2010, 2512, 0805, and 1206, they feature robust construction with copper electrodes and resistance alloy plates. The devices resist industrial solvents, withstand cyclic load, and are suitable for PCB mounting with compatibility for wave and IR reflow soldering, ensuring reliability in industrial and power electronics applications.
TTElectronics---Welwyn LRMAN1225R15FT1 Low Resistance Metal Alloy Resistors Specifications:
- Resistance range: 0.5mΩ to 300mΩ
- Power rating @70°C: 1-3 W depending on size
- Temperature range: -55°C to +170°C
- Resistance tolerance: ±1% or ±5%
- TCR (25–125°C): 2 to 100 ppm/°C
- Material: Cu-Ni, Mn-Cu alloy plates
- Size options: 0805, 1206, 2010, 2512, 1225, 0612, 0815
- Dimensions vary: e.g., 0805: 2.0 x 1.25 mm; 1206: 3.2 x 1.6 mm
- Insulation resistance >100 MΩ
- Soldering profile: pre-heat at 150-180°C, peak at 250-255°C
Buy the TT Electronics RIN Series High-Temperature Metal Alloy Resistors for Industrial Applications
Purchase TT Electronics RIN series high-quality low resistance resistors online now to benefit from RoHS compliance, high temperature tolerance, and robust construction suited for industrial and power electronic applications. These resistors are ideal for current sensing and power management, offering excellent stability, resistance to solvents, and compatibility with wave and IR reflow soldering processes. Ensure your projects have reliable, precise, and durable resistive components by ordering now from authorized distributors or online stores for quick delivery and consistent quality.
Order your TT Electronics RIN series low resistance resistors today and ensure reliable performance for power electronics and industrial projects.
Frequently Asked Questions
Where can I buy TTElectronics---Welwyn LRMAN1225R15FT1?
You can click on the BUY or RFQ button to purchase LRMAN1225R15FT1 from an authorized TTElectronics---Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAN1225R15FT1?
You can download the LRMAN1225R15FT1 datasheet or visit the TTElectronics---Welwyn website for support.
Who is the manufacturer of LRMAN1225R15FT1?
TTElectronics---Welwyn
