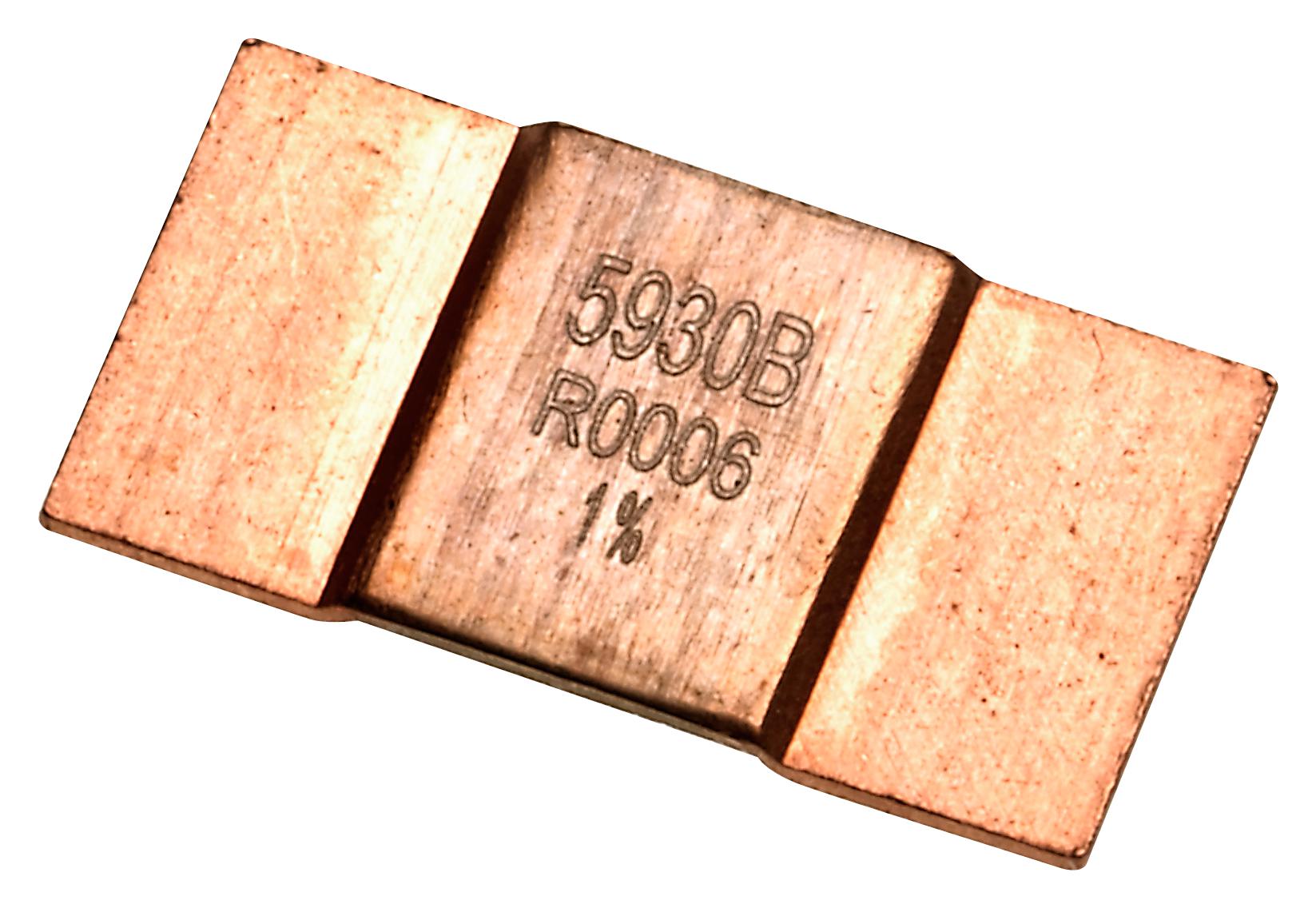

TTElectronics - Welwyn LRMAP5930BR0005FT Power Resistor
The LRMAP5930 power resistor by TT Electronics features low resistance alloy materials with resistance values from 0.2mΩ to 2mΩ, offering high power ratings up to 15W and excellent long-term stability. Suitable for current sensing in power electronics, it meets AEC-Q200 qualification, complies with RoHS3 standards, and is resistant to industrial cleaning solvents. Constructed with precision resistive strips using various alloys, it provides reliable performance in high temperature, pulse, and overload conditions, making it ideal for industrial and automotive applications.
TTElectronics - Welwyn LRMAP5930BR0005FT Power Resistor Specifications:
- Resistance range: 0.2mΩ to 2mΩ
- Power rating: up to 15W
- Resistance tolerance: ±1%
- Maximum operating temperature: 170°C
- Constructed from continuous E-beam welded resistive strip using various alloys
- IEC qualification: AEC-Q200
- RoHS3 and Pb-free compliant
- Dimensions vary depending on model, with typical sizes up to 1.42 mm height and 1.44 mm width
- Thermal impedance: approximately 3-13 K/W depending on model
- Resistant to industrial solvents
- Pulse and overload performance tested with specific curves for transient conditions
- Suitable for reflow soldering with lead-free profiles
- Marking includes resistance value, alloy type, and tolerance with laser marking
- Mounted on FR4 boards or thermal substrates for thermal management
Buy the Buy TT Electronics LRMAP5930 Power Resistor Part Number LRMAP5930BR0005FT Online
Purchase the TT Electronics LRMAP5930 power resistor online for reliable performance in high current sensing applications. Featuring low resistance values from 0.2mΩ to 2mΩ, they offer up to 15W power rating, excellent stability, and RoHS compliance. These resistors are constructed using precision resistive strips with various alloys, resistant to industrial solvents, suitable for reflow soldering, and capable of withstanding thermal, pulse, overload, and vibration stresses. Ideal for industrial, automotive, and power electronic circuits, they ensure durability and precise measurements.
Order your TT Electronics LRMAP5930 high power low resistance resistor today and ensure reliable current sensing in your power electronics projects.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRMAP5930BR0005FT?
You can click on the BUY or RFQ button to purchase LRMAP5930BR0005FT from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAP5930BR0005FT?
You can download the LRMAP5930BR0005FT datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRMAP5930BR0005FT?
TTElectronics - Welwyn
