TTElectronics - Welwyn LRZ0603R000 High Current Jumper Chip
The high current jumper chip LRZ series offers low resistance values up to 1.5 milliohms and current ratings up to 35A, utilizing thick film copper technology. Designed for high power applications, these zero-Ohm resistors feature excellent thermal conductivity, low inductance below 0.2nH, and are suitable for reflow or wave soldering. Available in sizes 0603, 0805, 1206, 2010, and 2512, they are AEC-Q200 qualified, RoHS compliant, and resilient against high temperature exposure, moisture, and thermal cycling, making them ideal for demanding electronic circuits.
TTElectronics - Welwyn LRZ0603R000 High Current Jumper Chip Specifications:
- Size: 0603, 0805, 1206, 2010, 2512
- Current rating at 70°C: 6A, 15A, 20A, 30A, 35A respectively
- Maximum overload current: 12A, 30A, 40A, 60A, 70A respectively
- Residual resistance: max 0.003Ω, typical 0.0015Ω
- Dielectric withstand voltage: 200V
- Ambient temperature range: -55°C to +150°C
- Dimensions: 0603: 1.6mm L, 0.8mm W; 0805: 2.0mm L, 1.25mm W; 1206: 3.2mm L, 1.6mm W; 2010: 5.2mm L, 2.6mm W; 2512: 6.5mm L, 3.25mm W
- Weight: 0603: 0.003g; 0805: 0.009g; 1206: 0.020g; 2010: 0.036g; 2512: 0.055g
- Construction: Thick film copper element on alumina substrate, resistance markings on top, Pb-free versions available
- Terminations: Copper with electroplated nickel barrier, solderable, suitable for reflow/wave soldering

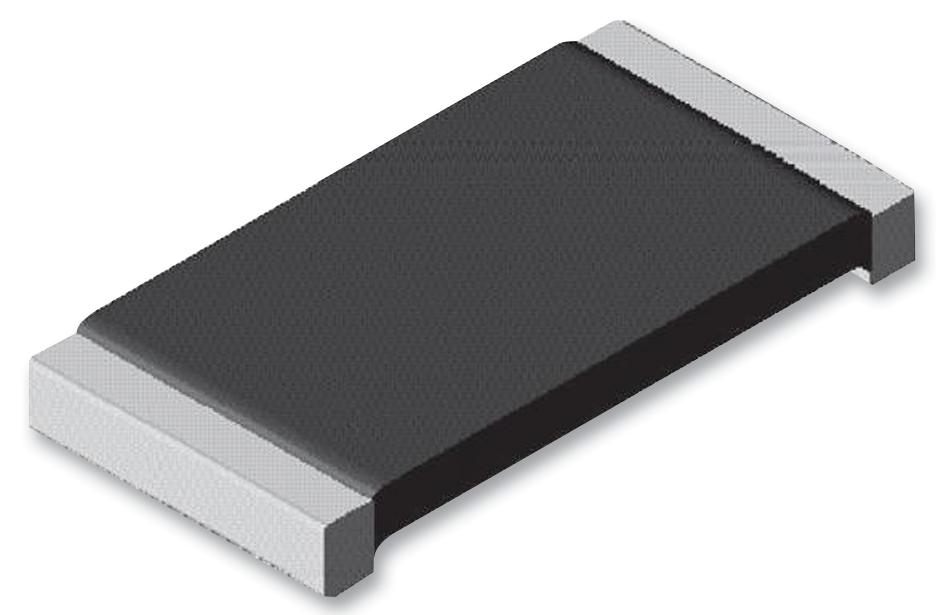

Buy the Buy TT Electronics LRZ Series High Current Jumper Chip Part Number LRZ0603R000 Online
Discover reliable high current jumper chips from TT Electronics in the LRZ series. Designed for demanding electronic applications, these zero-Ohm resistors deliver low resistance, high current capacity, and excellent thermal conductivity. Available in multiple sizes including 0603, 0805, 1206, 2010, and 2512 to fit various applications, they are RoHS compliant, AEC-Q200 qualified, and resist high temperature exposure, moisture, and thermal cycling. Perfect for designers seeking durable, efficient, and easy-to-solder high power circuit components online.
Order your TT Electronics LRZ series high current jumper chip LRZ0603R000 today and ensure your high power circuits have reliable, low-resistance connections.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRZ0603R000?
You can click on the BUY or RFQ button to purchase LRZ0603R000 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRZ0603R000?
You can download the LRZ0603R000 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRZ0603R000?
TTElectronics - Welwyn
