TTElectronics - Welwyn MFC0603R007FT5 Ceramic Chip Resistor
The metal foil on ceramic chip resistors belong to the MFC Series, designed for high power density, small size (0603, 2817, 4320), and precise performance. These resistors feature low TCR down to +30ppm/°C, operate within -55°C to +155°C, and are suitable for power electronics and current sensing applications. They are Pb-free, RoHS compliant, and resistant to industrial solvents, ensuring durability and reliability in demanding environments. Sizes range from 0603 to 4320, with resistance values from 5mΩ to 50Ω, and high overload ratings.
TTElectronics - Welwyn MFC0603R007FT5 Ceramic Chip Resistor Specifications:
- Sizes: 0603, 2817, 4320
- Resistance Range: 5mΩ to 50Ω
- Tolerance: ±1%
- Temperature Coefficient of Resistance (TCR): down to +30 ppm/°C
- Operating Temperature: -55°C to +155°C
- Power Rating @70°C: 0.5W (0603), 1W (2817), 1W (4320)
- Overload Rating: 5x rated power for 5 seconds
- Body Protection: Resistant to industrial cleaning solvents
- Construction: Metal foil on ceramic substrate with wrap-around terminations
- Marking: 2817 & 4320 marked with ohmic value only, 0603 unmarked
- Compliance: RoHS3, EU Directive 2011/65/EU
- Availability: Supplied on reels with standard packaging for automated assembly

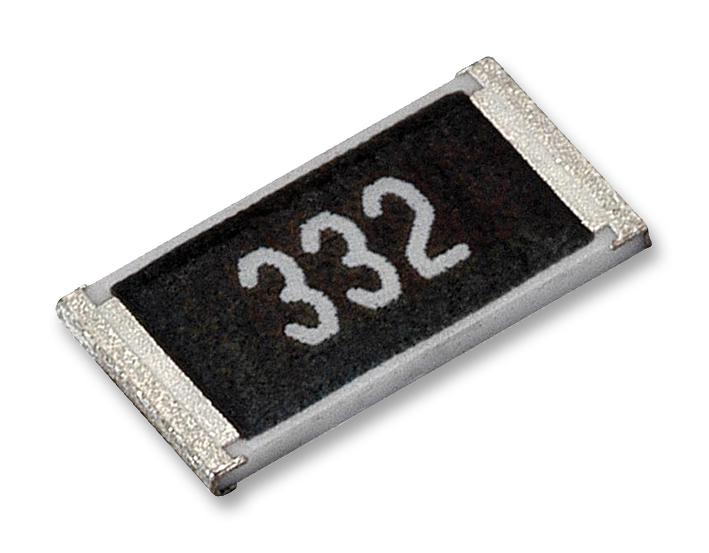

Buy the Buy TT Electronics Metal Foil Ceramic Resistor Part Number MFC0603R007FT5 Online
Enhance your electronic designs with our high-quality ceramic chip resistors, offering low TCR, small form factor, and high power density. Perfect for precise current sensing and demanding power electronic applications, these resistors are RoHS compliant and resistant to industrial solvents. With sizes from 0603 to 4320 and resistance values suitable for various circuits, they ensure durability and excellent performance. Conveniently supplied on reels for easy automation, these resistors are ideal for professionals seeking dependable, high-performance components online.
Buy TT Electronics MFC0603R007FT5 now and experience unmatched reliability and precision for power electronics and sensing applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn MFC0603R007FT5?
You can click on the BUY or RFQ button to purchase MFC0603R007FT5 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part MFC0603R007FT5?
You can download the MFC0603R007FT5 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of MFC0603R007FT5?
TTElectronics - Welwyn
