TTElectronics - Welwyn MFC0603R020FT5 Metal Foil Ceramic Chip Resistor
The MFC Series metal foil on ceramic chip resistors offer high precision and reliability for power electronics, featuring small sizes like 0603, 2817, and 4320. These resistors provide excellent temperature coefficient down to +30ppm/°C, high power density, and are RoHS3 compliant. Suitable for current sensing applications, they withstand harsh environments with resistance ranges from 5 to 20 milliohms for 0603, 3 to 150 milliohms for 2817, and 20 to 50 milliohms for 4320 sizes. They also endure cyclic loads, high temperatures, and moisture exposure with minimal resistance change.
TTElectronics - Welwyn MFC0603R020FT5 Metal Foil Ceramic Chip Resistor Specifications:
- Size: 0603, 2817, 4320
- Resistance Range: 5-20 mΩ (0603), 3-150 mΩ (2817), 20-50 mΩ (4320)
- Power Rating @70°C: 0.5 W (0603), 1 W (2817), 1 W (4320)
- Tolerance: ±1%
- TCR (425°C to +125°C): 30 ppm/°C or better
- Operating Temperature: -55°C to +155°C
- Maximum Overload: 5x rated power for 5 seconds
- Resistance to moisture, solder heat, and thermal cycling
- Construction: Metal foil bonded onto alumina substrate with protected wrap-around terminations
- RoHS3 Compliant, Pb-free, suitable for industrial cleaning solvents

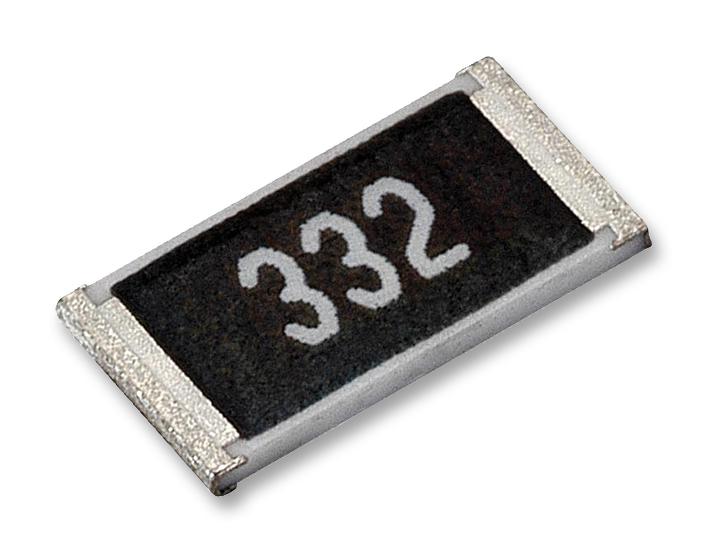

Buy the Buy TT Electronics MFC Series Resistors Part Number MFC0603R020FT5 Online
Purchase the TT Electronics MFC Series Metal Foil Ceramic Chip Resistor online today. Engineered for high accuracy, low TCR, and excellent thermal stability, these resistors are ideal for power electronics, current sensing, and demanding applications. With sizes like 0603, 2817, and 4320, they provide a broad resistance range, withstand harsh conditions, and meet industry standards for RoHS3 compliance. Enjoy fast delivery, competitive pricing, and technical support when you buy online for your critical electronic projects.
Buy TT Electronics MFC0603R020FT5 now and experience unmatched reliability and performance for power sensing applications with high precision and durability.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn MFC0603R020FT5?
You can click on the BUY or RFQ button to purchase MFC0603R020FT5 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part MFC0603R020FT5?
You can download the MFC0603R020FT5 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of MFC0603R020FT5?
TTElectronics - Welwyn
