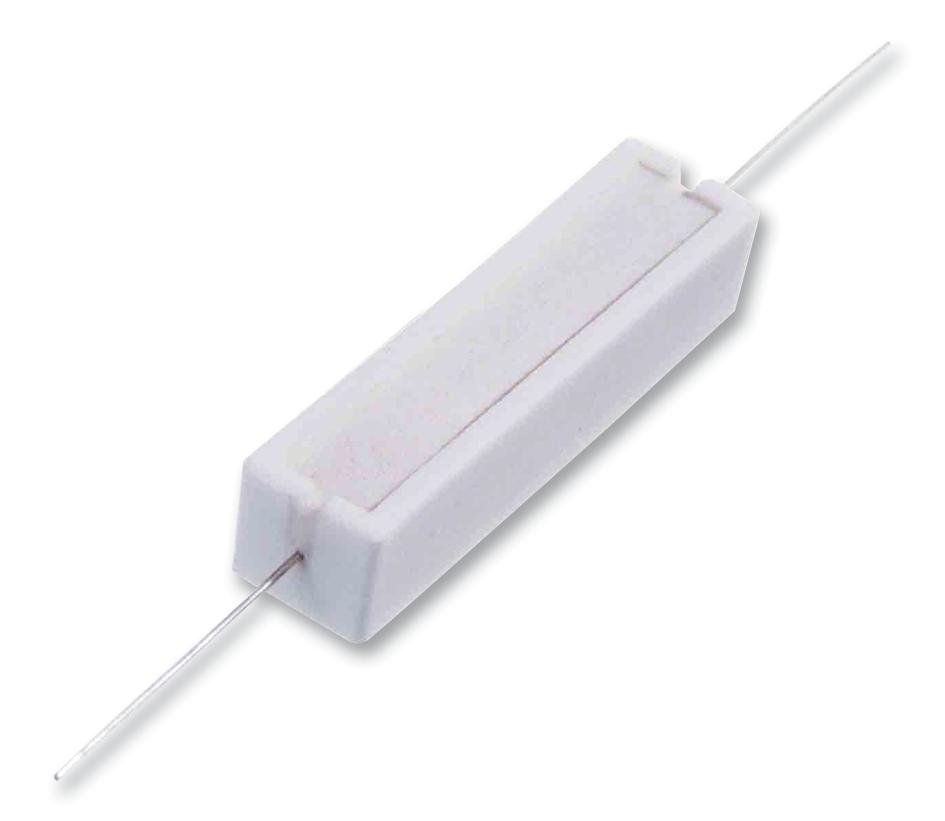

TTElectronics - Welwyn SQP7S0R33JB15 Ceramic Power Resistor
The SQP7S series ceramic resistors are high-power, RoHS compliant wirewound and metal oxide components with power ratings up to 10 watts and resistance ranges from 0.33 ohms to 200K ohms. Featuring ceramic case construction, inorganic potting, and tinned copper terminations, these resistors offer high overload capability, flameproof design, and excellent thermal stability for use in demanding electronic applications. Suitable for short-term overloads, damp heat, and rapid temperature changes, they are ideal for high-reliability circuits and power regulation.
TTElectronics - Welwyn SQP7S0R33JB15 Ceramic Power Resistor Specifications:
- Power rating at 70°C: 2W, 3W, 5W, 7W, 10W
- Limiting element voltage: 250V to 750V DC or AC RMS
- Resistance range: OR1 to 200K ohms for wirewound and oxide types
- Resistance tolerance: ±5%, ±10%
- Isolation voltage: 1000V
- Dimensions vary by series, e.g., SQP7S maximum length 36mm, height 10mm
- Materials: Ceramic case, fireproof insulation cement, tinned copper leads
- Temperature range: -55°C to +155°C
- Peak pulse handling capability: available upon request
- Flammability: Flameproof ceramic case, RoHS compliant, Pb-free
Buy the TT Electronics Series SQP: Ceramic Power Resistor 10W: SQP7S0R33JB15
Purchase the TT Electronics Series SQP7S ceramic power resistor online today for high overload capacity and stable thermal performance. Designed with a ceramic case and inorganic potting, this resistor offers high reliability and safety for demanding electronic applications. Its RoHS compliance and Pb-free construction make it suitable for modern manufacturing standards. With power ratings up to 10W and resistance ranges from 0.33 ohms to 200K ohms, this resistor delivers consistent performance under rapid temperature changes, damp heat conditions, and short-term overloads. Perfect for power regulation, high-reliability circuits, and demanding environments, order now for fast delivery and quality assurance.
Order your TT Electronics Series SQP7S ceramic power resistor today and ensure reliable performance in your high-power electronic projects.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn SQP7S0R33JB15?
You can click on the BUY or RFQ button to purchase SQP7S0R33JB15 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part SQP7S0R33JB15?
You can download the SQP7S0R33JB15 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of SQP7S0R33JB15?
TTElectronics - Welwyn
