TTElectronics - Welwyn SQP7S1R5JB15 Ceramic Power Resistor
The ceramic case resistors from the SQP / CAF / CAW Series are high-power wirewound or metal oxide resistors designed for durability and high overload capability. Constructed with a high purity ceramic rod, end caps, and either a wire element or metal oxide film, these resistors feature flameproof ceramic cases with inorganic potting material. They meet RoHS compliance, are Pb-free, and have excellent solderability and mechanical strength. Suitable for applications requiring high temperature resistance, they offer a range of power ratings from 2 to 25 watts, resistance values up to 200K ohms, and operate reliably within -55°C to +155°C ambient temperature range.
TTElectronics - Welwyn SQP7S1R5JB15 Ceramic Power Resistor Specifications:
- Power rating at 70°C: 2W to 25W
- Resistance range: 1Ω to 200KΩ
- Thermal impedance: Suitable for ambient temperatures -55°C to +155°C
- Dimensions: varies by model, min bend radius 1.6 mm
- Construction: Ceramic rod, end caps, wire wound or metal oxide film
- Termination: Tinned copper lead wires, meet IEC standards for solderability and strength
- Flammability: UL 94V-0 compliant, flameproof ceramic case
- Overload capability: Short term overload 6.25×Pr for 5s, resistance to solder heat within specified limits
- RoHS compliant, Pb-free, inorganic potting material, Pb-free marking
- Resistance values and tolerance: 1Ω to 200KΩ, typical ±5%, with some models including ±10%

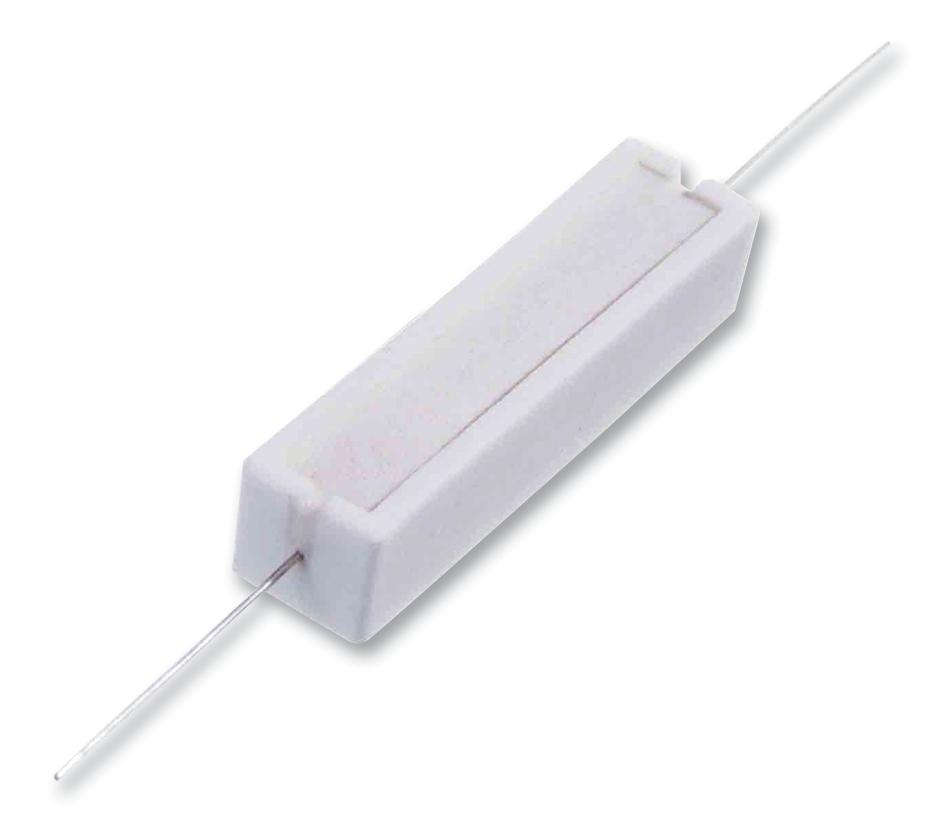

Buy the TT Electronics Series SQP Ceramic Resistor: SQP7S1R5JB15
Purchase the TT Electronics ceramic power resistor today to benefit from high overload capacity, exceptional durability, RoHS compliance, and reliable performance in high-temperature environments. Ideal for industrial, automotive, and power supply applications, this resistor series offers resistances up to 200K ohms, with power ratings ranging from 2 to 25 watts. Its flameproof ceramic case and inorganic potting ensure safety and longevity. Shop online now for fast delivery and get the high-quality resistance solutions you need for your demanding electronic projects.
Buy TT Electronics SQP7S1R5JB15 now and experience unmatched reliability and high overload capacity for demanding power applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn SQP7S1R5JB15?
You can click on the BUY or RFQ button to purchase SQP7S1R5JB15 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part SQP7S1R5JB15?
You can download the SQP7S1R5JB15 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of SQP7S1R5JB15?
TTElectronics - Welwyn
