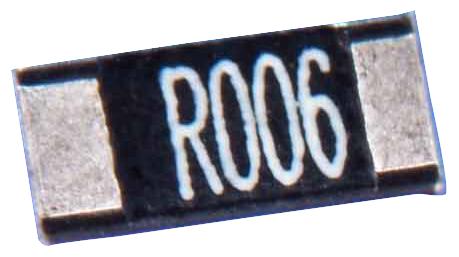

TTElectronics - Welwyn ULR3R002FT2 Current Sense Resistor
The current sense resistor from the ULR Series is a robust metal element designed for high temperature and high current applications. It features low TCR and inductance, with resistance ranging from 0.15 mQ to 22 mQ, and complies with RoHS and AEC-Q200 standards. Available in sizes 1206, 2010, and 2512, it offers various coatings like black, green, and uncoated options suitable for wave or reflow soldering. Its construction ensures excellent thermal performance, durability, and reliable electrical connections for industrial and automotive use.
TTElectronics - Welwyn ULR3R002FT2 Current Sense Resistor Specifications:
- Resistance Range: 0.15 mQ to 22 mQ
- Size: 1206, 2010, 2512
- Coatings: Black, Green, Uncoated
- Material: Low TCR resistance alloy with tin-plated connection bands
- Maximum Power Rating: Up to 0.2 W depending on size
- Protection: RoHS compliant, Pb-free, suitable for wave or reflow soldering
- Tolerance: ±1% for standard values, various resistance values marked on component
- Temperature Coefficient: Low TCR for high precision
- Solderability: ≥95% coverage (MIL-STD 202F / 208H)
- Operating Temperature: -55°C to +170°C (depending on coating resistance)
Buy the TT Electronics ULR3R002FT2 – Reliable Current Sense Resistance for Industrial Applications
Order the TT Electronics ULR3R002FT2 current sense resistor today for high temperature durability, low resistance, and superior electrical performance. Designed for industrial and automotive applications, this resistor offers excellent thermal management, RoHS compliance, and reliable soldering options. Its construction ensures precise resistance settings, low inductance, and high power handling, making it ideal for sensing and power distribution circuits. Secure your supply chain by purchasing this top-tier resistor online with confidence in quality and performance.
Buy TT Electronics ULR3R002FT2 now and experience unmatched reliability and high-precision performance for demanding electrical environments.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn ULR3R002FT2?
You can click on the BUY or RFQ button to purchase ULR3R002FT2 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part ULR3R002FT2?
You can download the ULR3R002FT2 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of ULR3R002FT2?
TTElectronics - Welwyn
