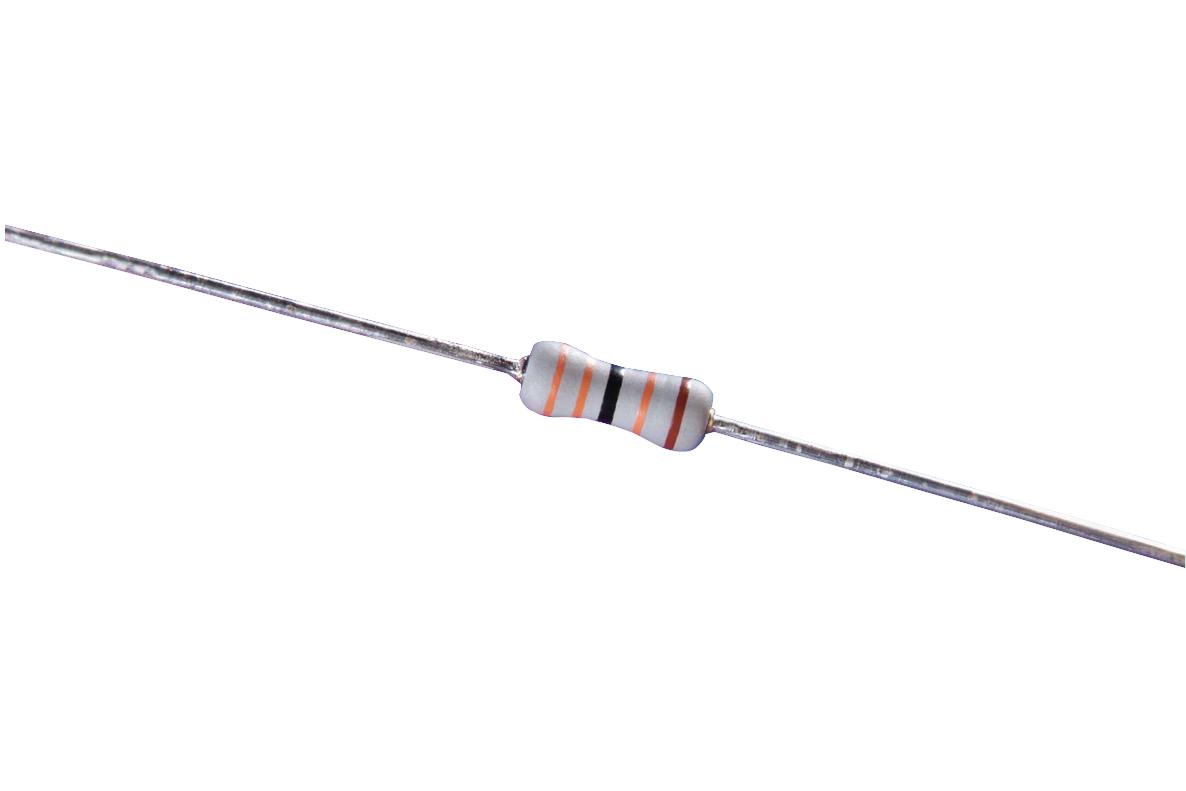

TTElectronics - Welwyn VRW37680KJI High Voltage Thick Film Resistor
The VRW series high voltage thick film resistors are designed for demanding applications requiring high working voltages up to 10kV, high resistance ranges up to 68M ohms, and excellent pulse load capability. Built with a robust flameproof coating, they feature surface-mount Zl-form options and meet IEC 60065 standards. Constructed with ceramic substrates and tin-plated copper terminals, they are resistant to solvents and do not burn under overload conditions. Suitable for industrial and electronic control applications, these components offer high reliability in compact sizes.
TTElectronics - Welwyn VRW37680KJI High Voltage Thick Film Resistor Specifications:
- Resistance range: 100K to 68M ohms
- Power rating at 70°C: variable according to resistance
- Isolation voltage: 700 volts minimum
- TCR: ppm/°C 200
- Resistance tolerance: 1%, 2%, 5%
- Voltage proof: 700 V minimum
- Construction: Ceramic substrate with resistive thick film
- Termination: Hot tin dipped copper wire, force fitted steel caps
- Flameproof coating: Yes
- Solvent resistance: Yes
- Solderability: Meets IEC 115-1 standard
- Body size: Dimensions vary, typical length to fit application
- Temperature range: Ambient temperature range applies, derating for PCB limitations
- Peak pulse voltage: 10 × 5s at 6.25 × Pr not exceeding 2 × LEV or 10kV in air
- RoHS compliant: Yes
Buy the Buy TT Electronics VRW Series High Voltage Resistors Part Number VRW37680KJI Online
Discover the TT Electronics high voltage thick film resistor, modeled VRW37680KJI. It offers resistance up to 68M ohms, voltage handling up to 10kV, and flameproof coating. Perfect for industrial control systems and high voltage circuits, it features a ceramic substrate with reliable tin-plated copper terminations. Its robust construction ensures high pulse load capacity and excellent solvent resistance, making it ideal for demanding environments. Purchase online today to ensure your project benefits from high-quality, RoHS-compliant resistors designed for safety and durability.
Get TT Electronics VRW37680KJI today—designed for high voltage applications with robust construction and reliable performance.
