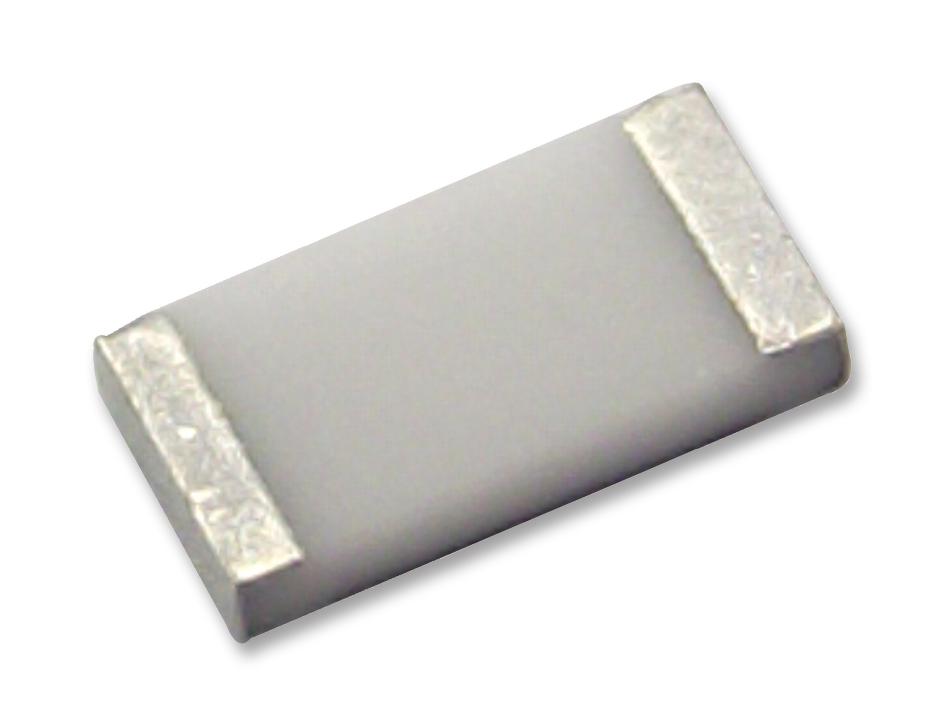

TTElectronics - Welwyn WCR0805220RFI Surface Mount Resistor
These general-purpose surface-mounted resistors from the WCR Series are designed for reliable performance across a wide range of sizes and ohmic values. Featuring wrap-around terminations, inner electrode protection, and compliance with RoHS3 standards, they are suitable for various electronic applications. Constructed with a high alumina substrate, ruthenium oxide resistance elements, and tin-plated terminations, they meet IEC safety and solderability requirements. Available with optional AEC-Q200 grade, these resistors offer temperature tolerance, stability, and solvent resistance, making them ideal for demanding industrial and automotive environments.
TTElectronics - Welwyn WCR0805220RFI Surface Mount Resistor Specifications:
- Resistance Range: <50 ohms to 10 megaohms
- Tolerance: ±1% (E96 1%)
- Temperature Range: -55°C to +155°C
- Resistance Temperature Coefficient: -400 to +600 ppm/°C (low values), +200 to +300 ppm/°C (high values)
- Electrical Test Voltage: 25V (1R-100K), 200V (>100K) and 500V (climatic tests)
- Load Life: 1000 hours at 70°C with AR% >100K: 2
- Shelf Life: 12 months at room temperature
- Mechanical Strength: IEC 68.2.21 compliant
- Solderability: IEC 115-1 compliant
- Protection: Glass dielectric, solvent resistant epoxy lacquer
- Termination Material: Tin-plated nickel and silver palladium
- Construction: Alumina substrate (96% min) with ruthenium oxide resistance element
- Marking: 3-digit code indicating resistance value, no marking for 0201/0402 types
- Packaging: Tape-mounted on reels - 8mm, 12mm plastic or paper tape depending on size
Buy the TT Electronics WCR0805220RFI – Reliable Surface Mount Resistor for Industrial Applications
Secure your supply of high-quality surface mount resistors like the WCR series online today. Designed for reliability, wide resistance ranges, and RoHS compliance, these resistors are ideal for industrial, automotive, and electronic manufacturing. Easily available in standard tape packaging, with optional AEC-Q200 grade for automotive use, they ensure consistent performance under demanding conditions. Order now through our online store to benefit from fast delivery and technical support, ensuring your projects stay on schedule and meet your specifications.
Buy TT Electronics WCR1206-10KFI now and experience unmatched reliability and performance in industrial and automotive environments.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WCR0805220RFI?
You can click on the BUY or RFQ button to purchase WCR0805220RFI from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WCR0805220RFI?
You can download the WCR0805220RFI datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WCR0805220RFI?
TTElectronics - Welwyn
