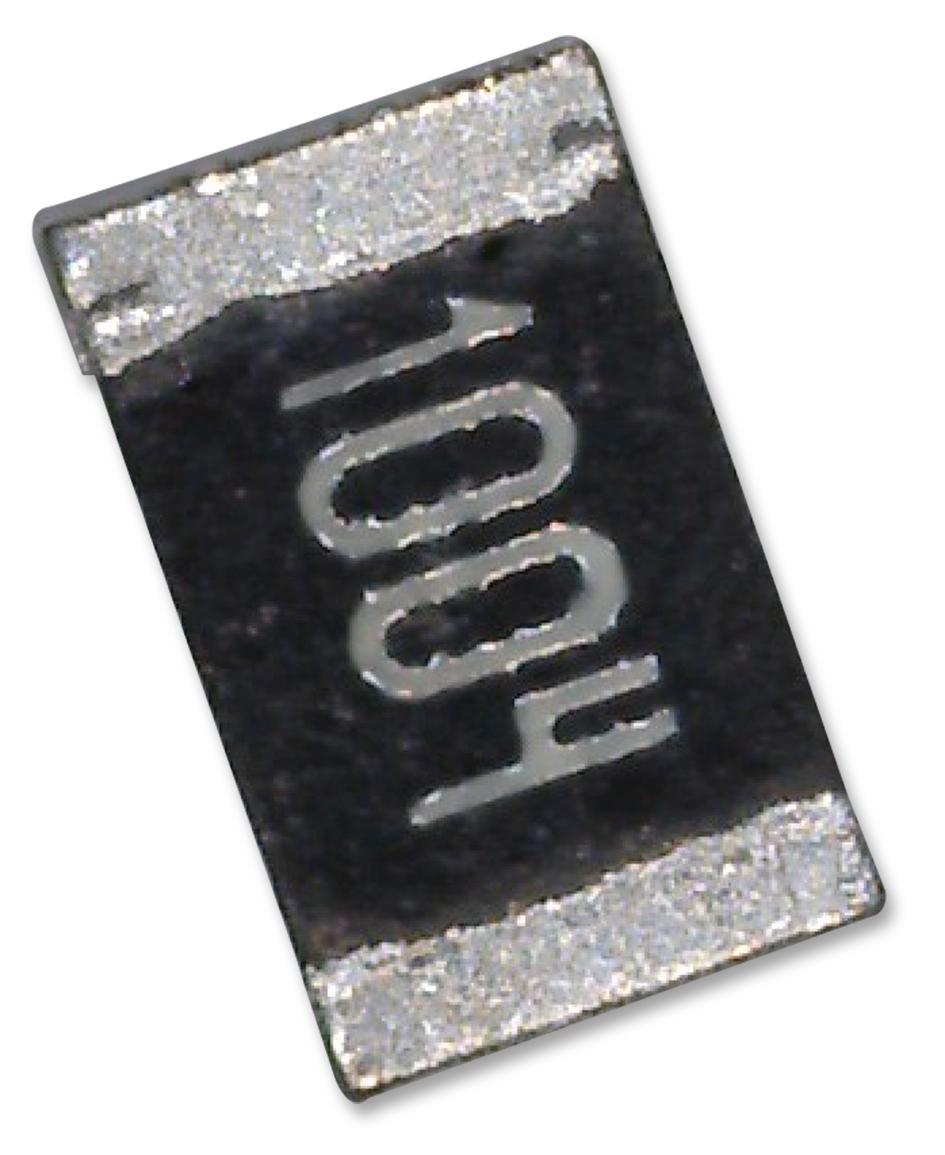

TTElectronics - Welwyn WCR12065K1FI Surface Mount Resistors
These general purpose surface mounted resistors from the WCR Series offer excellent reliability, a wide range of sizes and ohmic values, and wrap-around terminations for enhanced durability. Constructed with a high alumina substrate and ruthenium oxide resistance element, they feature a glazed protection coat. The resistors meet IEC standards for solderability and mechanical strength, with resistance values from 1Ω to 10MΩ and tolerance variations. Suitable for industrial applications, they are Pb-free, RoHS compliant, and available in various packaging options for easy automation mounting.
TTElectronics - Welwyn WCR12065K1FI Surface Mount Resistors Specifications:
- Resistance Range: 1Ω to 10MΩ
- Tolerance: ±1% (E96 components)
- Temperature Coefficient of Resistance (TCR): -400 to +600ppm/°C (low values), +200ppm/°C (11R to 100R), +300ppm/°C (3M3 to 10M)
- Ambient temperature range: -55°C to 155°C
- Termination: Wrap-around, tin plated with silver palladium, nickel barrier
- Construction: Alumina substrate (96% min), ruthenium oxide element, glazed protection
- Solderability: IEC 115-1 compliant
- Mechanical Strength: IEC 68.2.21 compliant
- Protection: Glass dielectric resistance element
- Packaging: Tape mounted, reels from 4,000 to 20,000 units depending on size
- Operating Voltage: Up to 500 V
- Reliability: 1000 hrs at 70°C with AR% <2
- Shelf Life: 12 months at room temperature
- Marking: 3-digit code indicating value with multiplier
- Solvent Resistance: Resistant to typical industrial cleaning fluids
Buy the Buy TT Electronics WCR1206 Resistor Range Part Number WCR12065K1FI Online
Purchase TT Electronics surface mounted resistors online today to ensure high reliability and compliance for your industrial electronics projects. These resistors feature a wide ohmic range from 1Ω to 10MΩ, precise tolerance of ±1%, and superior durability with wrap-around tin-plated terminations. Manufactured with a high alumina substrate and ruthenium oxide resistance element, they withstand harsh environmental conditions, meet IEC standards, and come in various packaging options for automated assembly. Secure your supply of dependable resistors today and enhance your manufacturing process with top-quality components.
Get TT Electronics WCR1206- resistors today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WCR12065K1FI?
You can click on the BUY or RFQ button to purchase WCR12065K1FI from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WCR12065K1FI?
You can download the WCR12065K1FI datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WCR12065K1FI?
TTElectronics - Welwyn
