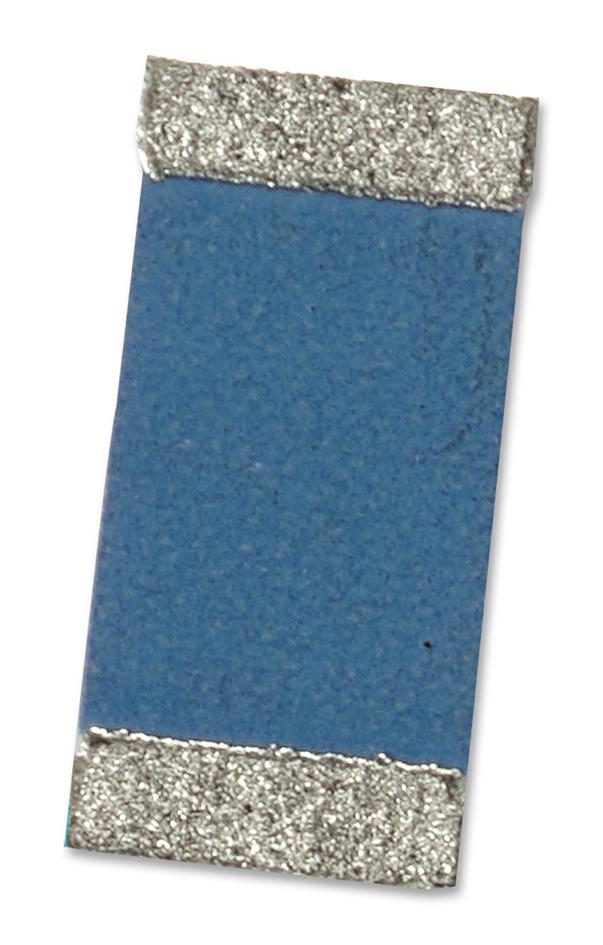

TTElectronics - Welwyn WINT0603LF025R05D Precision Chip Resistor
Water Insoluble Nitride Thin Film Precision Chip Resistors of the WIN Series are high-stability, moisture-resistant components designed for demanding environments. Made using TaN thin film technology, they offer excellent moisture protection, anti-sulfur terminations, and are 100% screened for quality. Suitable for applications requiring tight resistance tolerances of ±0.05%, these resistors operate in temperatures from -65°C to +150°C. They feature wrap-around solderable terminations with nickel barriers and tin or SnPb finishes, ensuring durability and reliable performance in humid, polluted, and harsh conditions.
TTElectronics - Welwyn WINT0603LF025R05D Precision Chip Resistor Specifications:
- Dimensions: 0.062 ±0.006 in (1.58 ±0.15 mm) length, 0.031 ±0.004 in (0.80 ±0.10 mm) width, 0.018 ±0.004 in (0.45 ±0.10 mm) height
- Resistance range: 5Ω to 1MΩ, tolerance: ±0.05% to ±0.5%, TCR: ±10 to ±25 ppm/°C
- Power rating @ 70°C: 0.1W to 0.33W depending on size, maximum voltage: 75V to 200V
- Operating temperature: -65°C to +150°C, construction includes resistive thin film on alumina substrate with epoxy coating
- Terminations: wrap-around with nickel barrier, plated with 100% matte tin or 60/40 SnPb finish, resistance to solvents
- Certifications: RoHS3 compliant, screened according to MIL-PRF-55342 and AEC-Q200 standards, suitable for demanding environments
Buy the Buy TT Electronics WIN Series Precision Chip Resistors Part Number WINT0603LF025R05D Online
Purchase TT Electronics WIN Series precision chip resistors online for reliable performance in demanding environments. These resistors feature TaN thin film technology for high temperature stability, excellent moisture and sulfur resistance, and tight tolerance of ±0.05%. With wrap-around solderable terminations and robust construction, they ensure durability and stable performance over long periods. Ideal for humid, polluted, and high-temperature applications, these resistors meet strict industry standards such as MIL-PRF-55342 and AEC-Q200, providing quality and peace of mind for your electronic projects.
Get TT Electronics WIN Series resistors today—designed for high stability, moisture resistance, and precision performance in harsh conditions.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WINT0603LF025R05D?
You can click on the BUY or RFQ button to purchase WINT0603LF025R05D from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WINT0603LF025R05D?
You can download the WINT0603LF025R05D datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WINT0603LF025R05D?
TTElectronics - Welwyn
