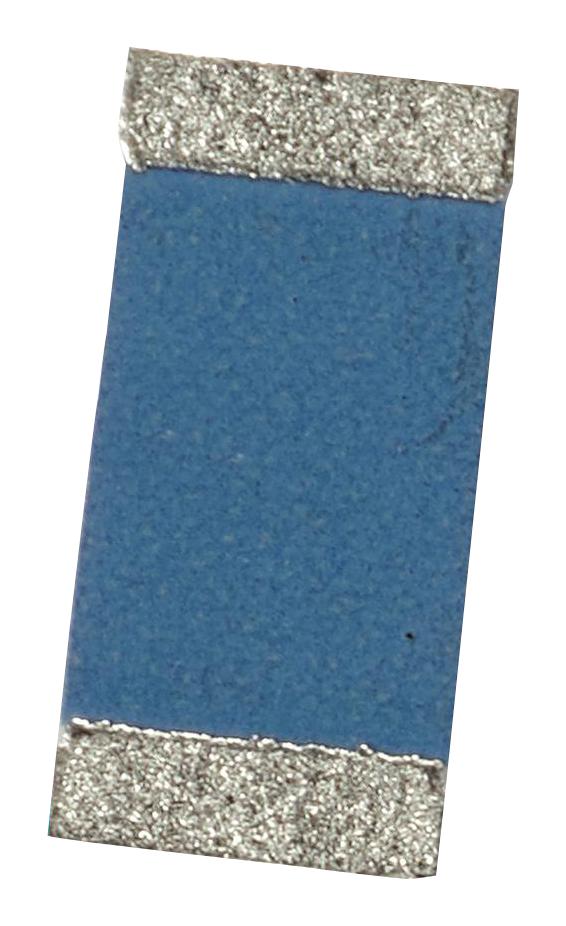

TTElectronics - Welwyn WINT0603LF0314R7B Precision Chip Resistor
The Welwyn WIN series are water-insoluble nitride thin film precision chip resistors designed for high reliability and stability in demanding environments. Available in T0603, T0805, and T1206 sizes, they cover resistance values from 5 ohms to 1 megaohm with tolerances as precise as ±0.05%. These resistors operate from -65°C to +150°C, with power ratings up to 0.33W at 70°C. Featuring anti-sulphur terminations and moisture resistance stability of ±100ppm over 2000 hours at 85°C/85% RH, they provide excellent durability against humidity, pollution, and chemical exposure, ideal for precision circuitry.
TTElectronics - Welwyn WINT0603LF0314R7B Precision Chip Resistor Specifications:
- Resistance Range: 5Ω to 1MΩ
- Power Ratings: 0.1W (T0603), 0.25W (T0805), 0.33W (T1206) at 70°C
- Tolerance: ±0.05%, ±0.1%, ±0.5%, ±1%
- Temperature Coefficient: ±15ppm/°C to ±50ppm/°C
- Operating Temperature Range: -65°C to +150°C
- Moisture Resistance Stability: ±100ppm over 2000 hours at 85°C, 85% RH
- Construction: Alumina substrate with thin film resistive layer, electroplated nickel barrier, tin or solder finishes
- Terminations: Wrap-around, solderable, resistant to solvents
- Certifications: RoHS3 compliant, MIL-PRF-55342 screening options available
- Body Size: T0603, T0805, T1206
- Environmental Resistance: High stability in humid, polluted, and chemically aggressive environments
Buy the Buy TT Electronics WIN Series Water Insoluble Nitride Thin Film Chip Resistors Part Number WINT0603LF0314R7B Online
Enhance your electronic designs with TT Electronics WIN Series precision chip resistors, offering exceptional stability, high accuracy, and resistance to humidity and pollution. These resistors feature water-insoluble nitride thin film technology, ensuring durability in harsh environments. Available in various sizes and resistance values, they are suitable for critical applications requiring tight tolerances and high temperature operation. Order online today to benefit from fast delivery and trusted performance in your advanced electronic projects.
Get TT Electronics WIN Series precision resistors today—built for high stability, reliability, and environmental resilience in demanding circuit applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WINT0603LF0314R7B?
You can click on the BUY or RFQ button to purchase WINT0603LF0314R7B from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WINT0603LF0314R7B?
You can download the WINT0603LF0314R7B datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WINT0603LF0314R7B?
TTElectronics - Welwyn
