TTElectronics - Welwyn WINT0805LF031473B Datasheet & Stock

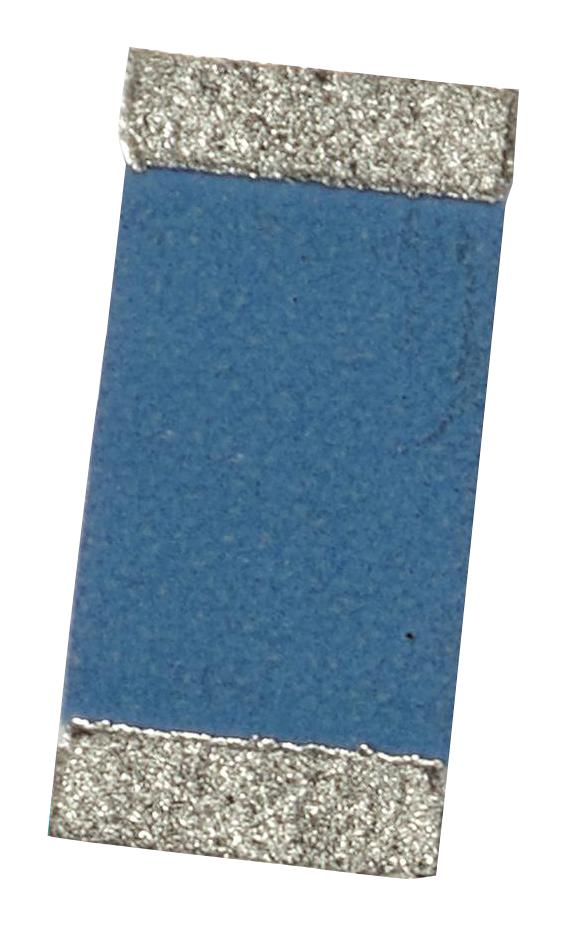

The Welwyn WIN series are water insoluble nitride thin film precision chip resistors. Resistance range includes E24, E96 and E192 decade values from 5ohm to 1Mohm. These chip resistors use an advanced metal film technology to provide high levels of reliability and stability for precision resistor applications.




Available in T0603, T0805 and T1206 case style

Power rating is 0.1W (T0603), 0.25W (T0805) and 0.33W (T1206) at 70°C

Available in ±0.05%, ±0.1%, ±0.5% and ±1% tolerance

Temperature coefficient of resistance ±15ppm/°C, ±25ppm/°C and ±50ppm/°C

Ambient temperature range from -65°C to +150°C

Anti-sulphur terminations

Typical moisture resistance stability ±100ppm

Typical 85°C, 85% RH biased humidity 2000hour stability

High stability in humid and polluted environments

Inherent moisture protection superior to that of passivated nichrome chip resistors
