TTElectronics - Welwyn WINT0805LF0314R7B Precision Chip Resistor
The Welwyn WIN series are water-insoluble nitride thin film precision chip resistors designed for high reliability and stability. They feature advanced metal film technology, available in T0603, T0805, and T1206 styles with power ratings of 0.1W, 0.25W, and 0.33W at 70°C. Tolerance levels are ±0.05%, ±0.1%, ±0.5%, and ±1%, with temperature coefficients of ±15ppm/°C, ±25ppm/°C, and ±50ppm/°C. Operating from -65°C to +150°C, they offer outstanding moisture resistance, surpassing passivated nichrome resistors, ideal for humid and polluted environments, with anti-sulphur terminations ensuring durability.
TTElectronics - Welwyn WINT0805LF0314R7B Precision Chip Resistor Specifications:
- Case Sizes: T0603, T0805, T1206
- Power Ratings: 0.1W, 0.25W, 0.33W at 70°C
- Resistance Range: 10R to 100K, 10R to 267K, 10R to 1MΩ
- Resistance Tolerance: ±0.05%, ±0.1%, ±0.5%, ±1%
- Temperature Coefficient (TCR): ±15ppm/°C, ±25ppm/°C, ±50ppm/°C
- Operating Temperature Range: -65°C to +150°C
- Voltage Ratings: 75V, 100V, 200V
- Moisture Resistance: Typical stability ±100ppm, stability in humid environments
- Durability: Anti-sulphur terminations, resistant to chemicals and humidity
- Dimensions: T0603 (1.58mm x 0.80mm), T0805 (2.02mm x 1.28mm), T1206 (3.15mm x 1.57mm)
- Build: Conductive thin film on alumina substrate with electroplated nickel barrier and tin finish
- Marking & Resistance: No markings; resistant to cleaning solvents
- Compliance: RoHS 2.0, Pb-free, EU Directive 2011/65/EU

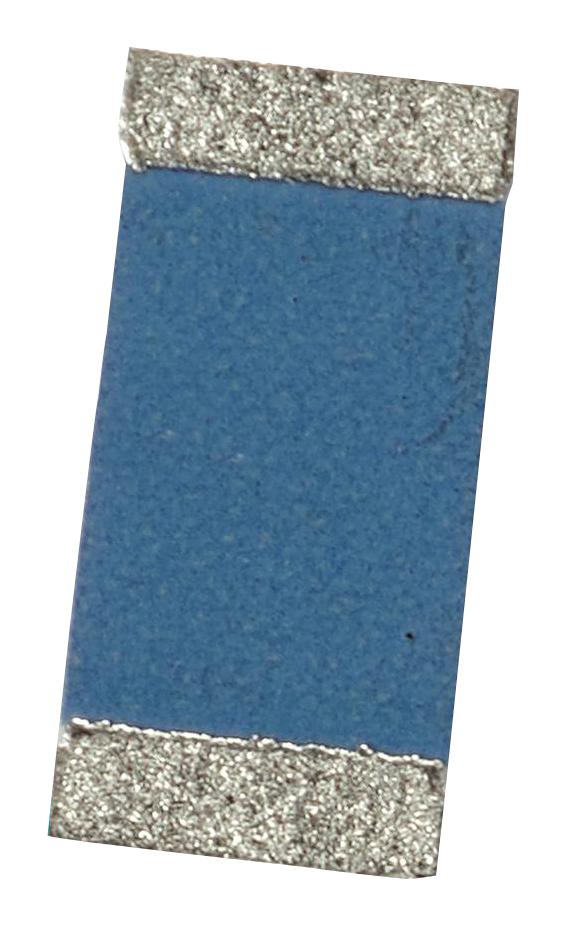

Buy the Buy TT Electronics WINT0805LF0314R7B Part Number WINT0805LF0314R7B Online
Purchase the TT Electronics WINT0805LF0314R7B precision chip resistor online today for reliable performance in humid, polluted, and high-temperature environments. Featuring advanced nitride thin film technology, these resistors provide excellent moisture resistance, stability, and durability, making them ideal for critical electronic applications. Their RoHS compliance and Pb-free construction ensure environmental safety and regulatory adherence. With a compact size, wide resistance range, and tight tolerance, they deliver consistent high performance in demanding industrial, automotive, and consumer electronics settings. Order now and enhance your project's reliability and longevity.
Order your TT Electronics WINT0805LF0314R7B precision resistor today and benefit from exceptional humidity resistance and high stability for demanding applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WINT0805LF0314R7B?
You can click on the BUY or RFQ button to purchase WINT0805LF0314R7B from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WINT0805LF0314R7B?
You can download the WINT0805LF0314R7B datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WINT0805LF0314R7B?
TTElectronics - Welwyn
