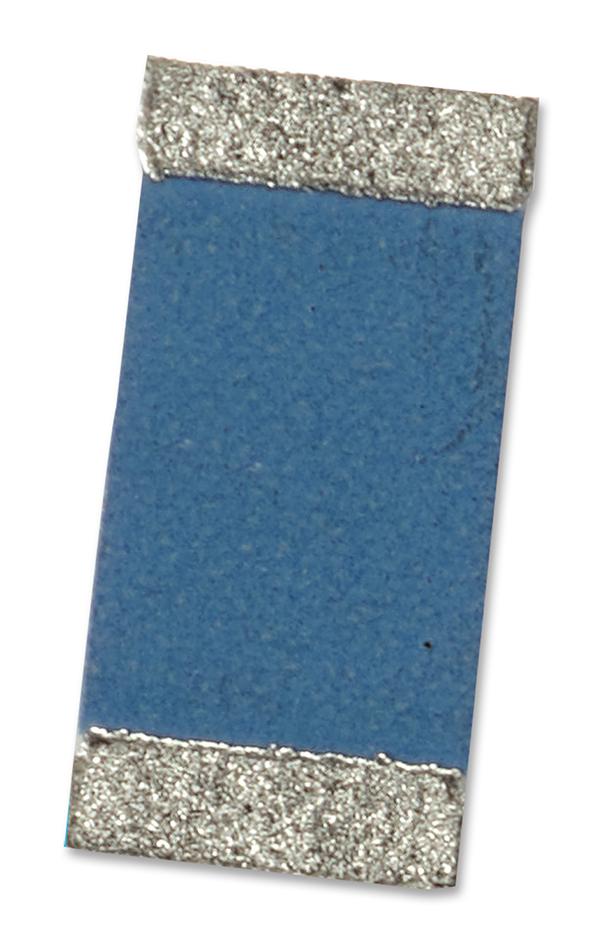

TTElectronics - Welwyn WINT1206LF111000A Precision Chip Resistor
Water Insoluble Nitride Thin Film Precision Chip Resistors from the WIN Series are high-stability, moisture-resistant components designed for demanding environments. These resistors offer excellent reliability, tolerance of ±0.05%, and TCR as low as ±25 ppm/°C. Suitable for applications requiring high stability in humid and polluted conditions, they feature anti-sulfur terminations, are RoHS compliant, and have a power rating up to 0.33W. Manufactured with thin film technology on alumina substrates, they undergo rigorous screening to meet MIL-PRF-55342 and AEC-Q200 standards, ensuring durability and performance in industrial electronics.
TTElectronics - Welwyn WINT1206LF111000A Precision Chip Resistor Specifications:
- Power rating @ 70°C: 0.1W, 0.25W, 0.33W
- Resistance range: 5R to 1MΩ
- Resistance tolerance: ±0.05%
- TCR: ±25 ppm/°C
- Dimensions: 3.2 mm x 1.6 mm x 0.45 mm (0.126 in x 0.063 in x 0.018 in)
- Material: Thin film resistive element on alumina substrate
- Termination: Wrap-around with electroplated nickel barrier, tin or SnPb finish
- Maximum voltage: 75V to 200V depending on model
- Operating temperature: -65°C to +150°C
- Moisture resistance: Less than 0.1% stability change after 2000 hours at 85°C, 85% RH
- Standards: RoHS compliant, screening to MIL-PRF-55342 and AEC-Q200
- Marking: No marking on the body, solvent-resistant
- Certifications: RoHS, MIL-PRF-55342, AEC-Q200
- Resistance values: Standard E192, E96 series, high stability in industrial environments
- Response to thermal shock, high-temperature, and humid conditions tested to industry standards
- Suitable for precision electronic circuits, measurement systems, and industrial equipment
Buy the TT Electronics WINT1206LF111000A – Reliable Precision Chip Resistors for Industrial Applications
Order TT Electronics precision chip resistors from the WIN Series online today to ensure high stability, moisture resistance, and durability. These resistors are perfect for industrial applications requiring tight tolerances of ±0.05%, low TCR of ±25 ppm/°C, and excellent performance in humid, polluted, or harsh environments. Manufactured with advanced thin film technology on alumina substrates, they undergo strict screening to meet MIL-PRF-55342 and AEC-Q200 standards. Invest now to enhance your electronic systems with high-quality, RoHS-compliant resistors that guarantee reliable operation and longevity in critical industrial processes.
Get TT Electronics WINT1206LF111000A today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WINT1206LF111000A?
You can click on the BUY or RFQ button to purchase WINT1206LF111000A from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WINT1206LF111000A?
You can download the WINT1206LF111000A datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WINT1206LF111000A?
TTElectronics - Welwyn
