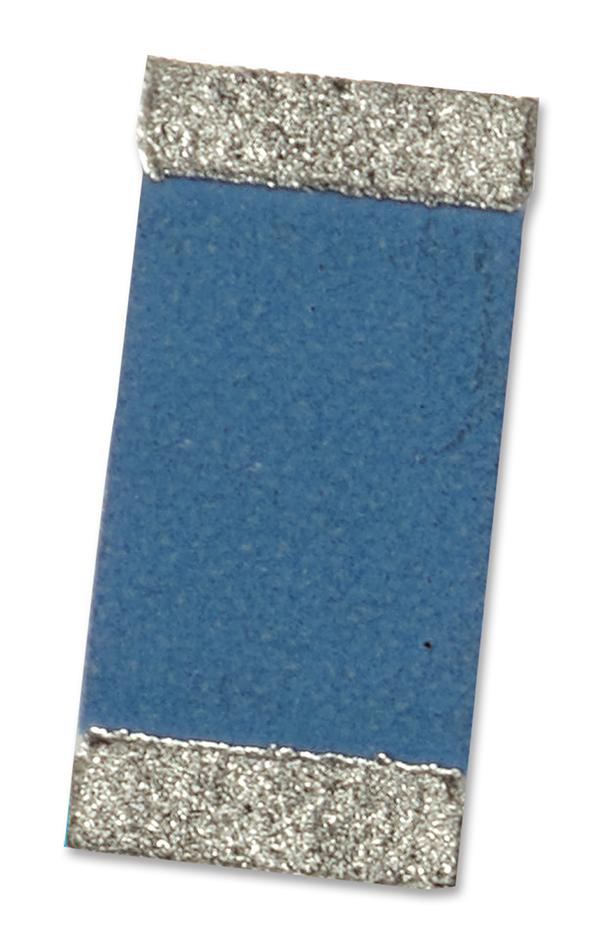

TTElectronics - Welwyn WINT1206LF111002A Precision Chip Resistor
The Precision Chip Resistors of the WIN Series feature water insoluble nitride thin film technology, offering superior moisture resistance, high stability in humid environments, and anti-sulfur terminations. These resistors are suitable for demanding applications requiring high accuracy, stability, and passively resistant to moisture and sulfur. Designed with wrap-around tin or SnPb finishes and certified for RoHS3 compliance, they are ideal for use in electronic circuits where reliability under harsh conditions is critical, such as industrial and aerospace electronics.
TTElectronics - Welwyn WINT1206LF111002A Precision Chip Resistor Specifications:
- Resistance range: 5R to 1MΩ
- Tolerance: ±0.05%
- Resistance TCR: ±10 ppm/°C
- Power rating @ 70°C: 0.1, 0.25, 0.33W
- Dimensions: Length 1.2mm, Width 0.6mm, Height 0.3mm
- Operating temperature: -65°C to +150°C
- Termination Finish: Sn or SnPb
- Water Resistance: Superior moisture protection, resistant to humidity and sulfur
- Certification: RoHS3, Lead-free, MIL-PRF-55342 screening
- Environmental stability: <0.1% after 2000 hours at 85°C, 85% RH
Buy the TaN Series Precision Chip Resistors: WINT1206LF111002A
Enhance your electronic designs with our high-precision, water-insoluble thin film chip resistors. Offering exceptional moisture resistance, stability, and anti-sulfur properties, these resistors are suitable for harsh environments. RoHS compliant and with a wide resistance range, they ensure reliable performance in industrial and aerospace applications. Perfect for demanding projects requiring high accuracy and durability, order now to benefit from our fast online purchasing process. Trust TT Electronics for quality components that meet your technical needs and environmental standards.
Order your TT Electronics Water Insoluble Nitride Thin Film Precision Chip Resistors today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WINT1206LF111002A?
You can click on the BUY or RFQ button to purchase WINT1206LF111002A from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WINT1206LF111002A?
You can download the WINT1206LF111002A datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WINT1206LF111002A?
TTElectronics - Welwyn
