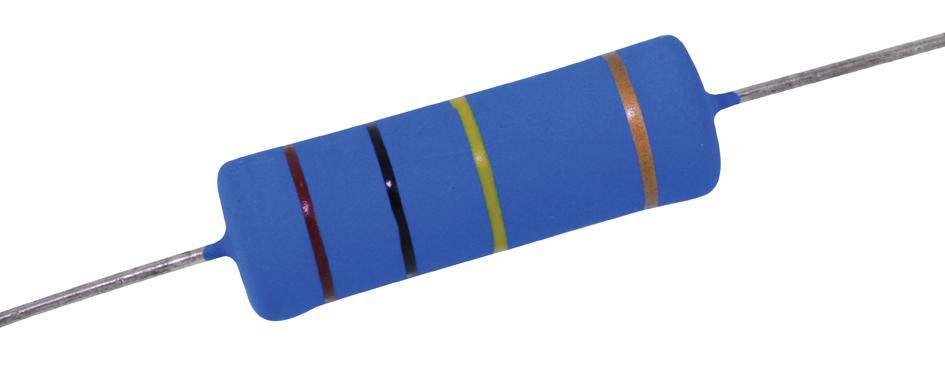

TTElectronics - Welwyn WMO5S100KJA05 Power Resistor
The WMO5S-100KJA05 is a compact, flameproof metal oxide resistor rated at 5W with 100 kΩ resistance, suitable for industrial applications. It employs a resistive film on a high-purity ceramic rod, with force-fitted end caps welded to termination wires, and is adjusted via a helical cut. Protected by a cement coating resistant to solvents, it features a 4-band IEC62 color code for value and tolerance. Its robust design ensures high temperature and overload resistance, making it ideal for power circuitry and pulse handling in industrial environments.
TTElectronics - Welwyn WMO5S100KJA05 Power Resistor Specifications:
- Resistance: 100 kΩ
- Power Rating: 5W
- Construction: Resistive film on ceramic rod, force-fitted end caps welded to wires
- Resistance Tolerance: 5%
- Temperature Range: -55°C to +155°C
- Resistance Adjustment: Helical cut
- Voltage Limit: 750V
- Body Protection: Cement coating resistant to solvents
- Flameproof: Yes
- Marking: Four-band IEC62 color code
- Resistance Change (TCR): Not specified
- Size: Compact for 5W power rating
- Color Coding: Four bands indicating value and tolerance
- Application: Industrial power circuits, pulse handling, high-temperature environments
- Certification: RoHS compliant, UL and IEC standards
Buy the TT Electronics WMO5S – Reliable Power Resistor for Industrial Applications
Order the TT Electronics WMO5S-100KJA05 power resistor today to ensure reliable performance in demanding industrial environments. Its flameproof design and high temperature resistance make it ideal for power circuits requiring robust and durable components. With a compact size, 5W power rating, and precise resistance tolerance, this high-quality resistor guarantees excellent pulse handling and overload capacity. Convenient online purchase options make it easy to source this essential component for your industrial projects, ensuring efficiency and safety in your applications.
Buy TT Electronics WMO5S-100KJA05 now and experience unmatched reliability and performance in industrial power and pulse applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WMO5S100KJA05?
You can click on the BUY or RFQ button to purchase WMO5S100KJA05 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WMO5S100KJA05?
You can download the WMO5S100KJA05 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WMO5S100KJA05?
TTElectronics - Welwyn
