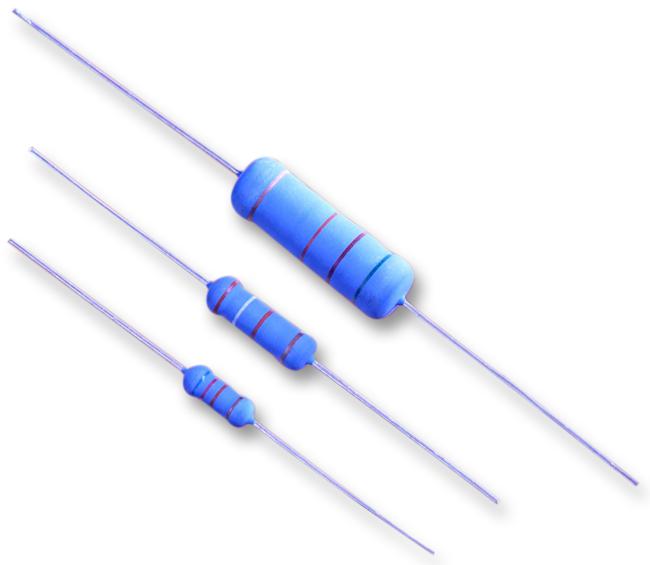

TTElectronics - Welwyn WMO5S1KJA05 power resistor
The WMO5S-1KJA05 is a 1 kΩ, 5W flameproof metal oxide resistor with a compact size suitable for power applications. Its resistive film is deposited on a high-purity ceramic rod, with force-fitted end caps welded to termination wires. Resistance is adjusted by a helical cut, and it features a cement protective coating resistant to industrial solvents and high temperatures. Color-coded markings indicate the value and tolerance in accordance with IEC 62. Designed for pulse handling and overload resilience, this resistor ensures reliable performance in demanding environments.
TTElectronics - Welwyn WMO5S1KJA05 power resistor Specifications:
- Resistance range: 10R-150KΩ
- Power rating: 5W
- Thermal impedance: 70-155°C/W
- Voltage: 250V-750V (limiting element voltage)
- Resistance tolerance: ±5%
- Resistance material: Metal oxide film
- Construction: Ceramic rod with force-fitted end caps
- Marking: Color-coded per IEC 62
- Solvent Resistance: Body and markings resistant to industrial cleaning solvents
- Flammability: Will not burn under overload
- Dimensions: Length approximately 6 mm, body diameter approximately 2 mm
- Operating temperature: -55°C to +155°C
- Derating: Due to thermal considerations, derating may be necessary at elevated temperatures
- Certification: Meets RoHS directives
- Body protection: Cement coating
Buy the TT Electronics Series WMO-5S 1K Ohm Flameproof Metal Oxide Resistor: WMO5S1KJA05
Purchase the TT Electronics Series WMO-5S 1K Ohm power resistor online today to benefit from reliable, flameproof protection and excellent pulse handling capabilities. This high-quality resistor, constructed with a ceramic body and solvent-resistant coating, guarantees durability in challenging environments. With a compact size, precise resistance adjustment, and compliance with RoHS standards, it is ideal for industrial and power circuit applications. Reliable online ordering ensures quick delivery, enabling you to enhance your projects with top-tier, proven technology.
Order your TT Electronics Series WMO-5S 1K Ohm flameproof metal oxide resistor today and ensure your electronic projects have durable, high-performance components.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WMO5S1KJA05?
You can click on the BUY or RFQ button to purchase WMO5S1KJA05 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WMO5S1KJA05?
You can download the WMO5S1KJA05 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WMO5S1KJA05?
TTElectronics - Welwyn
