TTElectronics - Welwyn WPRT20AB15RJB270 Wirewound Power Resistor
The WPRT series wirewound power resistors offer 10 to 50 watts power ratings with quick connect or soldered terminals, optional mounting brackets, a flameproof case, and high overload capacity. Qualified to AEC-Q200 standards, these resistors feature ceramic construction with tin-plated steel terminals, making them suitable for demanding industrial applications. They provide reliable performance with resistance range options from 1Ω to 820Ω, temperature ratings from -55°C to +155°C, and resistance tolerances of ±5%. Designed for durability, they resist solvents and conditions of high overload, ensuring longevity in power electronics and industrial control systems.
TTElectronics - Welwyn WPRT20AB15RJB270 Wirewound Power Resistor Specifications:
- Power ratings: 10 to 50 watts at 25°C
- Resistance range: 1Ω to 820Ω
- Resistance tolerance: ±5%
- Operating temperature: -55°C to +155°C
- Thermal impedance: 7-18°C/W
- Overload: 5x rated power for short durations
- Resistance TCR: < 20 ppm/°C
- Isolation voltage: 1000 V
- Construction: Ceramic rod with wire element, tin-plated steel terminals
- Case: Flameproof ceramic with cement insulation
- Maximum overload: Up to 250W for 5 seconds
- Dimensions vary by model, typically around 41-75mm in length

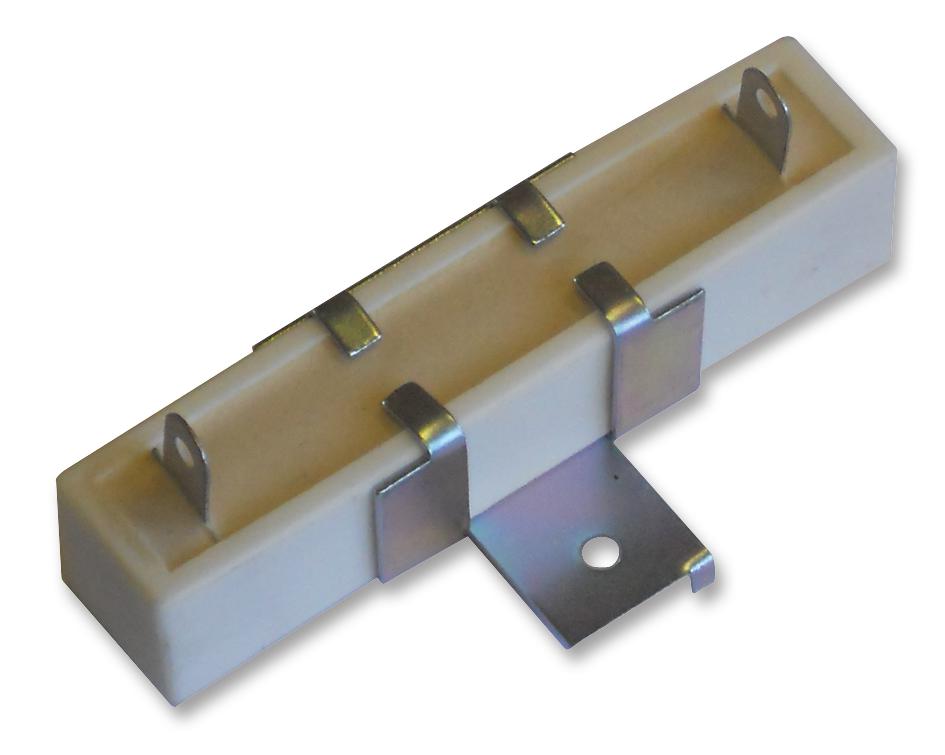

Buy the Buy Welwyn WPRT Series Wirewound Power Resistor Part Number WPRT20AB15RJB270 Online
Purchase the high-quality Welwyn wirewound power resistor WPRT20AB15RJB270 online today. Engineered for demanding environments, this resistor features a ceramic case, robust wire element, and excellent overload capacity, making it ideal for industrial power systems, heating elements, and control circuits. With a power rating of 20 watts, resistance range from 1Ω to 820Ω, and operating temperatures from -55°C to +155°C, it provides reliable performance and durability for your power electronics projects. Secure fast delivery and warranty assurance when buying online.
Get Welwyn WPRT20AB15RJB270 today—built for high overload capacity and long-lasting durability in power control applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WPRT20AB15RJB270?
You can click on the BUY or RFQ button to purchase WPRT20AB15RJB270 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WPRT20AB15RJB270?
You can download the WPRT20AB15RJB270 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WPRT20AB15RJB270?
TTElectronics - Welwyn
